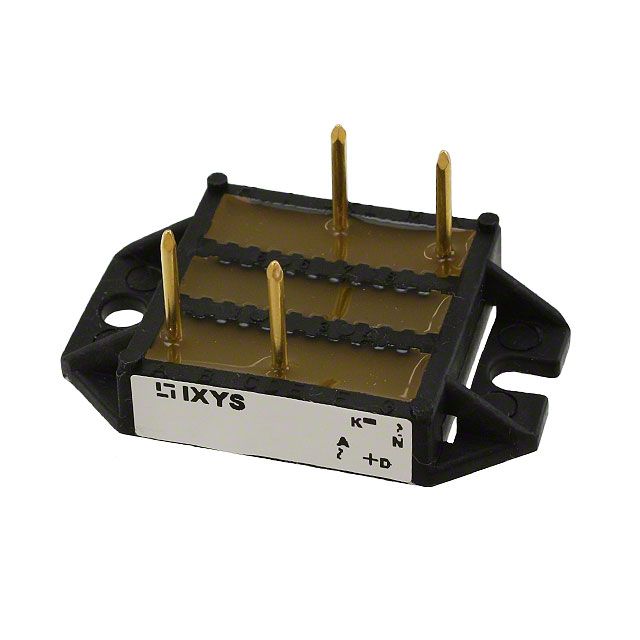

VBO68-16NO7

Active

IXYS

BRIDGE RECT 1P 1.6KV 68A ECOPAC1

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 1P 1.6KV 68A ECOPAC1

Technical Specifications

Parameters and characteristics for this part

Specification	VBO68-16NO7

Current - Average Rectified (Io)	68 A
Current - Reverse Leakage @ Vr	40 µA
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	ECO-PAC1
Supplier Device Package	ECO-PAC1
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.14 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Technology	Diode Type	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Mounting Type	Voltage - Peak Reverse (Max)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]
IXYS VBO68-16NO7	Standard	Single Phase	40 µA	ECO-PAC1	68 A	Chassis Mount	1.6 kV	ECO-PAC1	150 °C	-40 °C	1.14 V
IXYS VBO68-12NO7	Standard	Single Phase	40 µA	ECO-PAC1	68 A	Chassis Mount		ECO-PAC1	150 °C	-40 °C	1.14 V	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1.6 kV Chassis Mount ECO-PAC1
