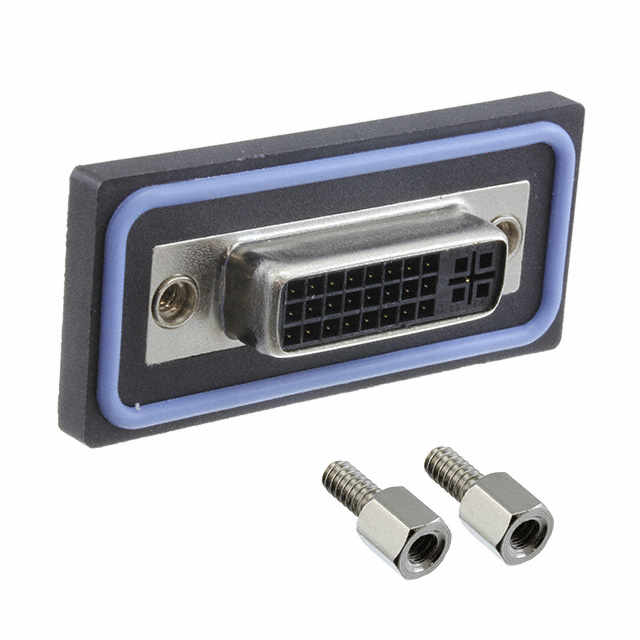

DDD-25PFFS-SL8001
ActiveAmphenol LTW
CONN RCPT DVI-D DUAL 25POS PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DDD-25PFFS-SL8001
ActiveAmphenol LTW
CONN RCPT DVI-D DUAL 25POS PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DDD-25PFFS-SL8001 |
|---|---|
| Connector Type | DVI-D, Dual Link |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Mounting Feature | Flange, Vertical |
| Mounting Type | Through Hole, Panel Mount |
| Number of Contacts | 25 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Steel |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.92 | |
| 10 | $ 9.83 | |||
| 30 | $ 9.26 | |||
| 50 | $ 9.02 | |||
| 100 | $ 8.78 | |||
| 250 | $ 7.83 | |||
| 500 | $ 7.36 | |||
| 1000 | $ 6.50 | |||
Description
General part information
DDD-25PFFS Series
DVI-D, Dual Link Receptacle Connector 25 Position Panel Mount, Through Hole
