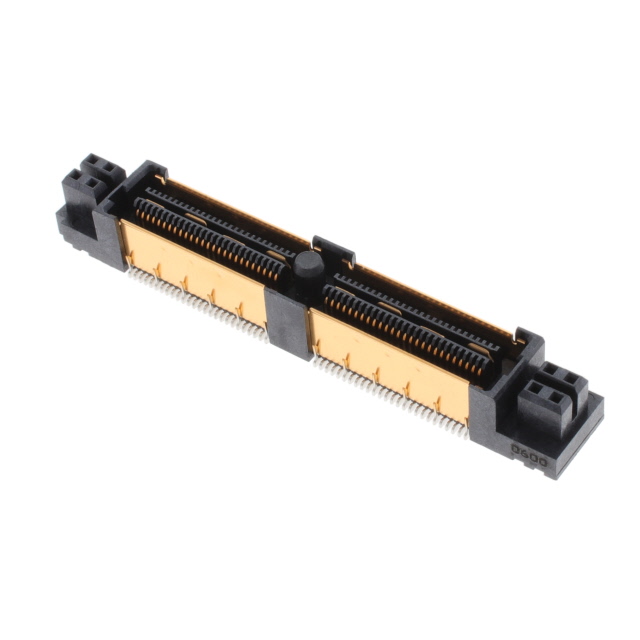

QFSS-052-04.25-L-D-PC4-P

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Deep-Dive with AI

Search across all available documentation for this part.

QFSS-052-04.25-L-D-PC4-P

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFSS-052-04.25-L-D-PC4-P

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Shielded, Power Pins (8), Board Guide, Ground Bus (Plane)
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions [custom]	104
Number of Positions [custom]	8
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QFSS-052 Series

Part	Mated Stacking Heights	Number of Rows	Connector Type	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Features	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QFSS-052-04.25-H-D-A-GP	11 mm	2	Center Strip Contacts Receptacle	104	Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.76 Ám	30 Áin	7.06 mm	0.278 "	Surface Mount
Samtec Inc. QFSS-052-04.25-L-D-A-GP	11 mm	2	Center Strip Contacts Receptacle	104	Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.25 Ám	10 Áin	7.06 mm	0.278 "	Surface Mount
Samtec Inc. QFSS-052-01-L-D-A-PC8		2	Center Strip Contacts Receptacle		Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.25 Ám	10 Áin			Surface Mount	104	16
Samtec Inc. QFSS-052-04.25-L-D-PC4-P	11 mm	2	Center Strip Contacts Receptacle		Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	0.25 Ám	10 Áin	7.06 mm	0.278 "	Surface Mount		8	104
Samtec Inc. QFSS-052-04.25-L-D-A	11 mm	2	Center Strip Contacts Receptacle	104	Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.25 Ám	10 Áin	7.06 mm	0.278 "	Surface Mount
Samtec Inc. QFSS-052-04.25-L-D-A-P-TR	11 mm	2	Center Strip Contacts Receptacle	104	Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.25 Ám	10 Áin	7.06 mm	0.278 "	Surface Mount
Samtec Inc. QFSS-052-04.25-L-D-P	11 mm	2	Center Strip Contacts Receptacle	104	Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.25 Ám	10 Áin	7.06 mm	0.278 "	Surface Mount
Samtec Inc. QFSS-052-04.25-L-D-PC4	11 mm	2	Center Strip Contacts Receptacle		Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	0.25 Ám	10 Áin	7.06 mm	0.278 "	Surface Mount		8	104
Samtec Inc. QFSS-052-04.25-L-D-PC8	11 mm	2	Center Strip Contacts Receptacle		Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.25 Ám	10 Áin	7.06 mm	0.278 "	Surface Mount	104	16
Samtec Inc. QFSS-052-04.25-L-D-A-P	11 mm	2	Center Strip Contacts Receptacle	104	Gold	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Shielded	0.25 Ám	10 Áin	7.06 mm	0.278 "	Surface Mount
