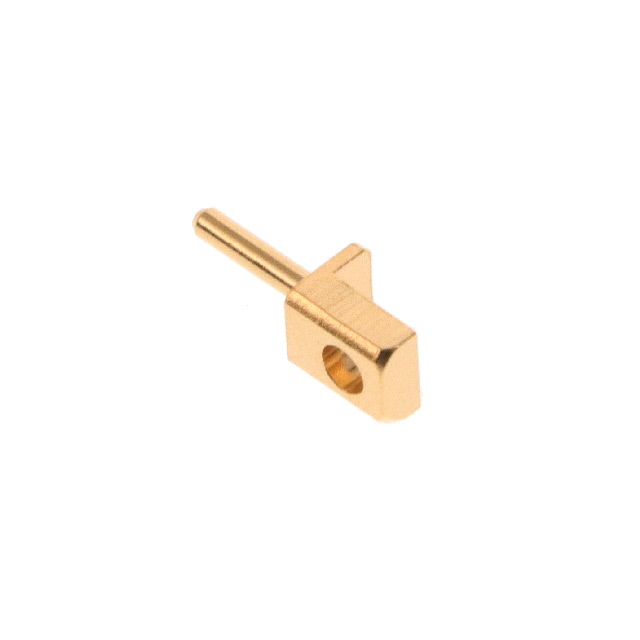

3621-0-32-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3621-0-32-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3621-0-32-15-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.2 in |
| Length - Above Flange [x] | 5.08 mm |
| Length - Overall [x] | 0.356 in |
| Length - Overall [x] | 9.04 mm |
| Mounting Type | Board Edge |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Rivet |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.69 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.07 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.83 | |||
| 1000 | $ 0.78 | |||
| 2500 | $ 0.71 | |||
Description
General part information
3621-0 Series
PC Pin Terminal Connector Board Edge Gold 0.040" (1.02mm) Dia
Documents
Technical documentation and resources
No documents available
