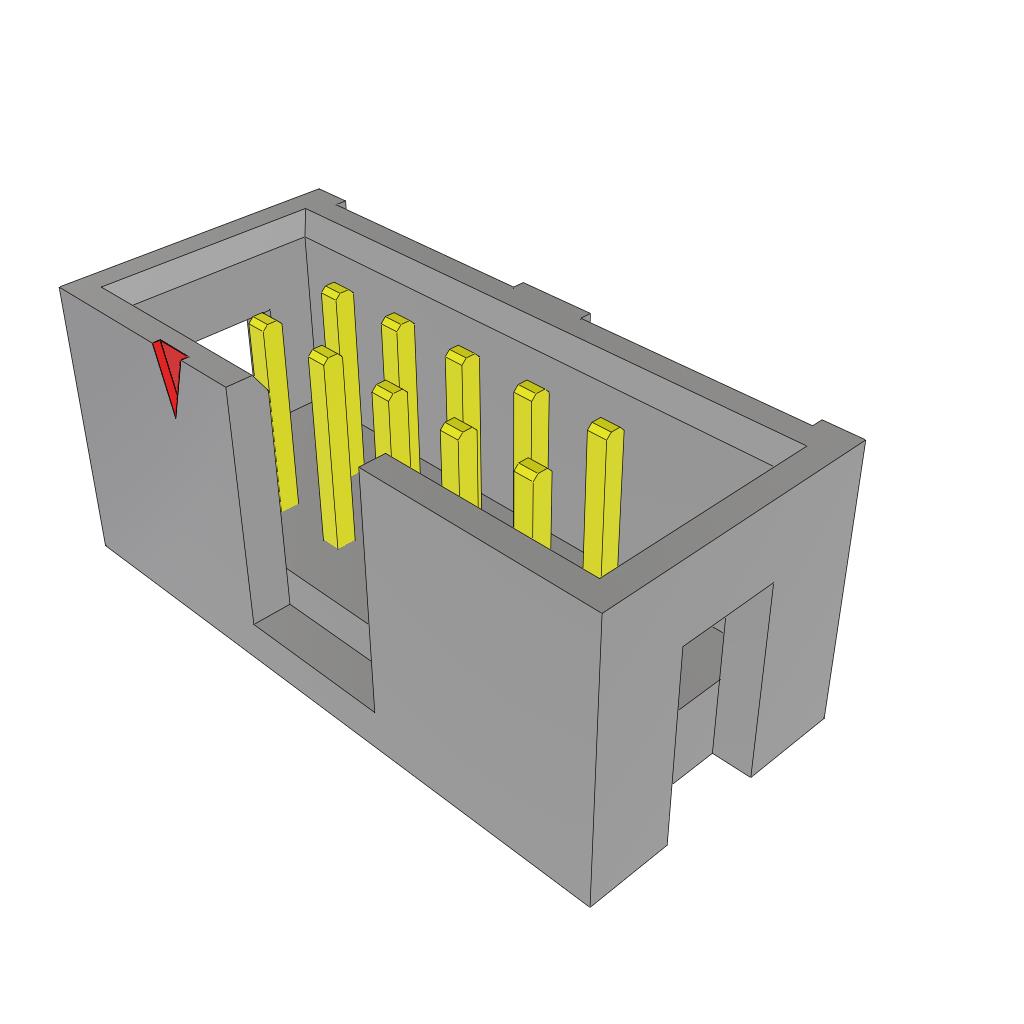

TST-105-05-G-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 10 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTST-102-01-G-D Datasheet 02 Datasheet +1

TST-105-05-G-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 10 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

DocumentsTST-102-01-G-D Datasheet 02 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST-105-05-G-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.23 in
Contact Length - Post	5.84 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.365 in
Insulation Height	9.27 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

TST-105 Series

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Shape	Number of Positions Loaded	Shrouding	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Mounting Type	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows	Fastening Type	Number of Positions	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [custom]	Insulation Height [custom]	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Number of Positions Loaded
Samtec Inc. TST-105-05-G-D-RA	Solder	-55 °C	125 °C	UL94 V-0	Black	2.54 mm	0.1 in	Male Pin	Square	All	Shrouded - 4 Wall	0.23 in	5.84 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole Right Angle	Board to Cable/Wire	3 µin	0.076 µm	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	10 çin	0.25 çm	Phosphor Bronze	Gold	0.365 in	9.27 mm	2	Push-Pull	10	Gold
Samtec Inc. TST-105-02-G-D-LL	Kinked Pin Solder	-55 °C	125 °C	UL94 V-0	Black	2.54 mm	0.1 in	Male Pin	Square	All	Shrouded - 4 Wall			6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole	Board to Cable/Wire	3 µin	0.076 µm	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	10 çin	0.25 çm	Phosphor Bronze	Gold			2	Push-Pull	10	Gold	0.165 in	4.19 mm	0.35 in	8.89 mm	13.46 mm	0.53 in
Samtec Inc. TST-105-01-T-D-LL	Kinked Pin Solder	-55 °C	105 ░C	UL94 V-0	Black	2.54 mm	0.1 in	Male Pin	Square	All	Shrouded - 4 Wall	0.115 in	2.92 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole	Board to Cable/Wire			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled			Phosphor Bronze	Tin			2	Push-Pull	10				0.35 in	8.89 mm	12.19 mm	0.48 in
Samtec Inc. TST-105-04-F-D-RA	Solder	-55 °C	125 °C	UL94 V-0	Black	2.54 mm	0.1 in	Male Pin	Square	All	Shrouded - 4 Wall	0.13 in	3.3 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole Right Angle	Board to Cable/Wire			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled			Phosphor Bronze	Tin	0.365 in	9.27 mm	2	Push-Pull	10	Gold							Flash
Samtec Inc. TST-105-01-L-D-LL	Kinked Pin Solder	-55 °C	125 °C	UL94 V-0	Black	2.54 mm	0.1 in	Male Pin	Square	All	Shrouded - 4 Wall	0.115 in	2.92 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole	Board to Cable/Wire			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	10 çin	0.25 çm	Phosphor Bronze	Tin			2	Push-Pull	10	Gold			0.35 in	8.89 mm	12.19 mm	0.48 in
Samtec Inc. TST-105-01-G-D-LL	Kinked Pin Solder	-55 °C	125 °C	UL94 V-0	Black	2.54 mm	0.1 in	Male Pin	Square	All	Shrouded - 4 Wall	0.115 in	2.92 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole	Board to Cable/Wire	3 µin	0.076 µm	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	10 çin	0.25 çm	Phosphor Bronze	Gold			2	Push-Pull	10	Gold			0.35 in	8.89 mm	12.19 mm	0.48 in
Samtec Inc. TST-105-01-T-D-02	Solder	-55 °C	105 ░C	UL94 V-0	Black	2.54 mm	0.1 in	Male Pin	Square		Shrouded - 4 Wall	0.115 in	2.92 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole	Board to Cable/Wire			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled			Phosphor Bronze	Tin			2	Push-Pull	10				0.35 in	8.89 mm	12.19 mm	0.48 in		9
Samtec Inc. TST-105-04-G-S-RA	Solder	-55 °C	125 °C	UL94 V-0	Black			Male Pin	Square	All	Shrouded - 4 Wall	0.13 in	3.3 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole Right Angle	Board to Cable/Wire	3 µin	0.076 µm	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	10 çin	0.25 çm	Phosphor Bronze	Gold	0.265 in	6.73 mm	1	Push-Pull		Gold
Samtec Inc. TST-105-04-H-D-RA	Solder	-55 °C	125 °C	UL94 V-0	Black	2.54 mm	0.1 in	Male Pin	Square	All	Shrouded - 4 Wall	0.13 in	3.3 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole Right Angle	Board to Cable/Wire	3 µin	0.076 µm	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Phosphor Bronze	Gold	0.365 in	9.27 mm	2	Push-Pull	10	Gold
Samtec Inc. TST-105-01-S-S	Solder	-55 °C	125 °C	UL94 V-0	Black			Male Pin	Square	All	Shrouded - 4 Wall	0.115 in	2.92 mm	6.35 mm	0.25 in	0.1 in	2.54 mm	Header	Through Hole	Board to Cable/Wire			Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Phosphor Bronze	Tin			1	Push-Pull		Gold			0.35 in	8.89 mm	12.19 mm	0.48 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 4.38
		50	$ 3.57
Digikey	Bulk	1	$ 4.38
		50	$ 3.57
		100	$ 3.04
		500	$ 2.70
		1000	$ 2.51

Description

General part information

TST-105 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

TST-102-01-G-D Datasheet 02

Datasheet

TST-105-05-G-D-RA

Deep-Dive with AI

TST-105-05-G-D-RA

Deep-Dive with AI

Technical Specifications

TST-105 Series

Pricing

Description

TST-105 Series

Documents

TST-102-01-G-D Datasheet 02

Datasheet

.100" High-Temp Shrouded Terminal Strip, Cable Mate

TST-105 Series
