AK500-RA-7-3

Active

Assmann WSW Components

CORD 18AWG IEC320 RA - CBL 9.84'

Search across all available documentation for this part.

Active

Assmann WSW Components

CORD 18AWG IEC320 RA - CBL 9.84'

Technical Specifications

Parameters and characteristics for this part

Specification	AK500-RA-7-3

1st Connector	Right Angle, IEC 320-C13
2nd Connector	Cable
Approval Agency Marking	UL
Approved Countries	United States
Color	Black
Cord Type	SJT
Current Rating (Amps)	10 A
Length [x]	9.84 ft
Length [x]	3 m
Number of Conductors	3
Operating Temperature	60 °C
Shielding	Unshielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	250 VDC
Wire Gauge	18 AWG

Part	Approved Countries	Approval Agency Marking	Voltage Rating	2nd Connector	Shielding	Length [x]	Length [x]	1st Connector	Wire Gauge	Color	Number of Conductors	Operating Temperature	Cord Type	Current Rating (Amps)	Style
Assmann WSW Components AK500-RA-7-3	United States	UL	250 VDC	Cable	Unshielded	9.84 ft	3 m	IEC 320-C13 Right Angle	18 AWG	Black	3	60 °C	SJT	10 A	Female Sockets (Slots) to Leads
Assmann WSW Components AK500-RA-6-0.5	United States	UL	250 VDC	Cable	Unshielded	1.64 ft	500 mm	IEC 320-C13 Right Angle	18 AWG	Black	3	60 °C	SVT	10 A	Female Sockets (Slots) to Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.98

General part information

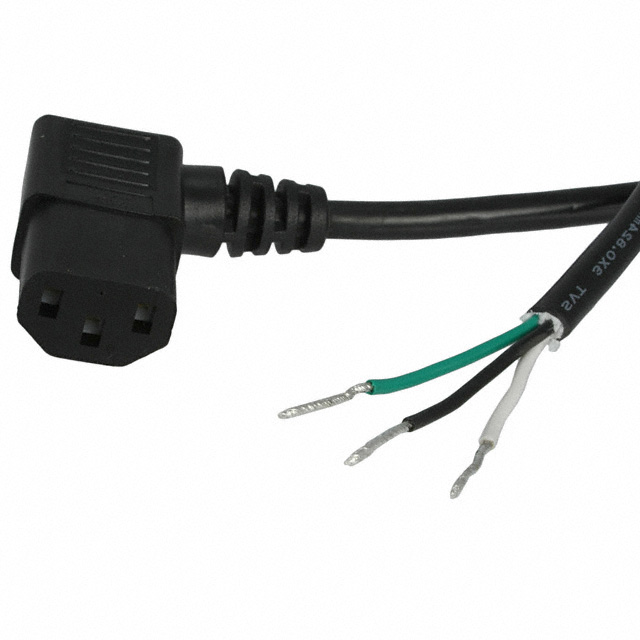

9.84' (3.00m) Power Cord Black IEC 320-C13, Right Angle To Cable SJT

Technical documentation and resources
