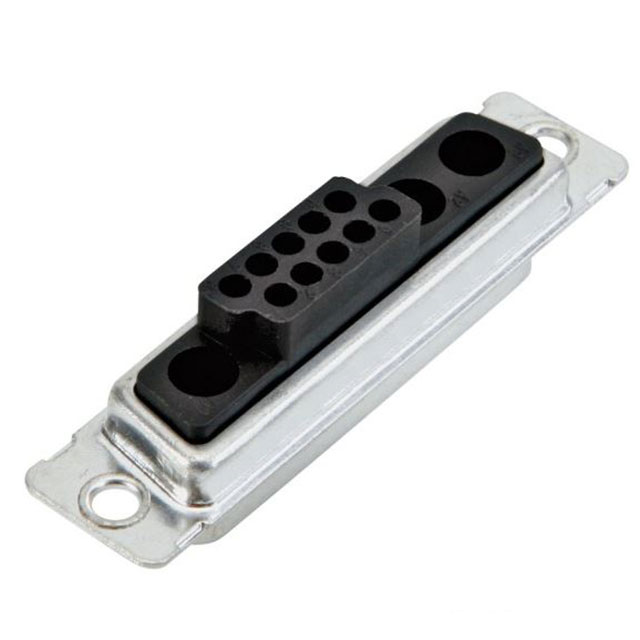

3025W3PXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 25POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3025W3PXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 25POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3025W3PXK99A10X

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Power, Signal and Coax
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	DC, C - 25W3
Shell Size, Connector Layout [Min]	4

3025W3P Series

Part	Contact Material	Material Flammability Rating	Number of Rows	Number of Positions	Dielectric Material	Mounting Type	Voltage Rating	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout [Min]	Connector Style	Features	Current Rating (Amps)	Color	Connector Type	Contact Finish	Flange Feature	Backset Spacing	Backset Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
Amphenol CONEC 3025W3PAT99N20X	Copper Alloy	UL94 V-0	2	25	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	250 VDC	Solder	DC C - 25W3	4	Combo D-Sub	Grounding Indents Mounting Brackets	7.5 A	Green	Male Pins Plug	Gold	Housing/Shell (4-40)	0.283 in	7.2 mm
Amphenol CONEC 3025W3PXK99A10X			2	25	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)			DC C - 25W3	4	Combo D-Sub	Grounding Indents		Black	Plug for Male Contacts		Housing/Shell (Unthreaded)			-55 °C	125 °C	Contacts Not Included	Power Signal and Coax
Amphenol CONEC 3025W3PAR71E20X															Male Pins Plug
Amphenol CONEC 3025W3PAR71AA0X															Male Pins Plug
Amphenol CONEC 3025W3PAT75N40X															Male Pins Plug
Amphenol CONEC 3025W3PAR99A10X	Copper Alloy	UL94 V-0	2	25	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	250 VDC	Solder	DC C - 25W3	4	Combo D-Sub	Grounding Indents	7.5 A	Green	Male Pins Plug	Gold	Housing/Shell (Unthreaded)							8 çin	0.203 çm
Amphenol CONEC 3025W3PAM99A10X	Copper Alloy	UL94 V-0	2	25	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)			DC C - 25W3	4	Combo D-Sub	Grounding Indents		Green	Male Pins Plug	Gold	Housing/Shell (Unthreaded)									Flash	20 AWG
