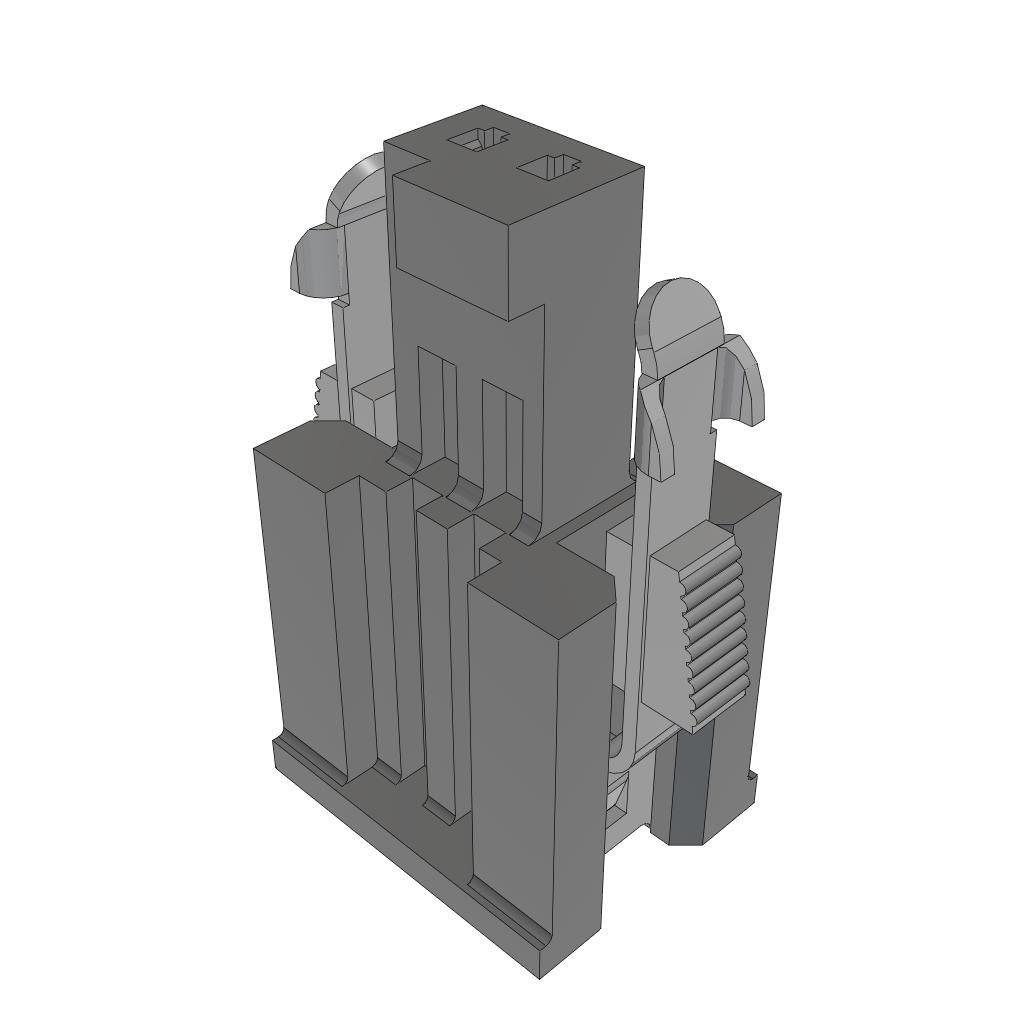

ISDF-02-S-M

Active

Samtec Inc.

HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Search across all available documentation for this part.

Active

Samtec Inc.

HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Contact Termination	Insulation Material	Note	Contact Type	Pitch [x]	Pitch [x]	Color	Fastening Type	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Features	Row Spacing	Row Spacing
Samtec Inc. ISDF-02-S-M	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Female Socket	0.05 in	1.27 mm	Black	Latch Lock	2	Free Hanging (In-Line)	-55 °C	125 °C	1	Retention Latches
Samtec Inc. ISDF-02-S	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Female Socket	0.05 in	1.27 mm	Black	Latch Lock	2	Free Hanging (In-Line)	-55 °C	125 °C	1
Samtec Inc. ISDF-02-D-R	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Female Socket	0.05 in	1.27 mm	Black	Latch Lock	4	Free Hanging (In-Line)	-55 °C	125 °C	2		1.27 mm	0.05 in
Samtec Inc. ISDF-02-S-R	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Female Socket	0.05 in	1.27 mm	Black	Latch Lock	2	Free Hanging (In-Line)	-55 °C	125 °C	1
Samtec Inc. ISDF-02-D-L	Insulator	Crimp	Liquid Crystal Polymer (LCP)	Contacts Not Included	Female Socket	0.05 in	1.27 mm	Black	Friction Lock	4	Free Hanging (In-Line)	-55 °C	125 °C	2		1.27 mm	0.05 in
