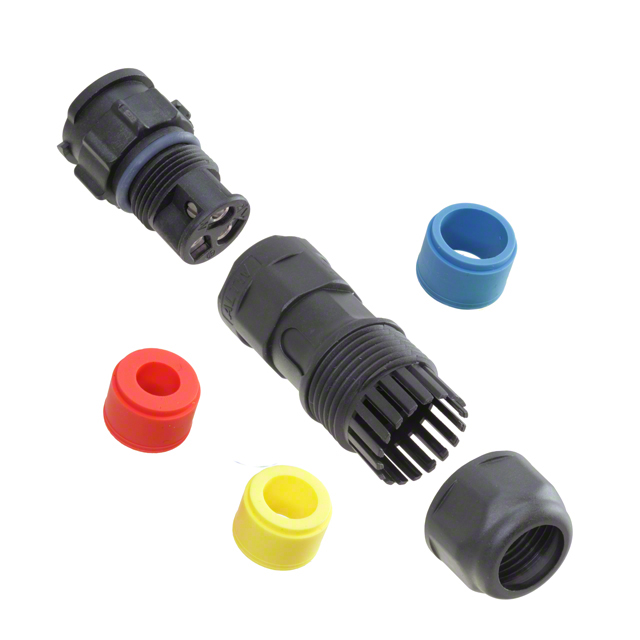

CC-03BMFB-QL8APP
ActiveAmphenol LTW
CONN RCPT FMALE 3POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
CC-03BMFB-QL8APP
ActiveAmphenol LTW
CONN RCPT FMALE 3POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-03BMFB-QL8APP |
|---|---|
| Cable Opening [custom] | 0.472 in, 0.236 in |
| Cable Opening [custom] | 12 mm |
| Cable Opening [custom] | 6 mm |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 1 |
| Number of Positions [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | C |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.32 | |
| 10 | $ 11.78 | |||
| 25 | $ 10.65 | |||
| 50 | $ 9.89 | |||
| 100 | $ 9.20 | |||
| 250 | $ 8.38 | |||
| 500 | $ 7.83 | |||
| 1000 | $ 7.33 | |||
Description
General part information
CC-03BMFB Series
3 (2 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
