87258-3

Active

TE Connectivity AMP Connectors

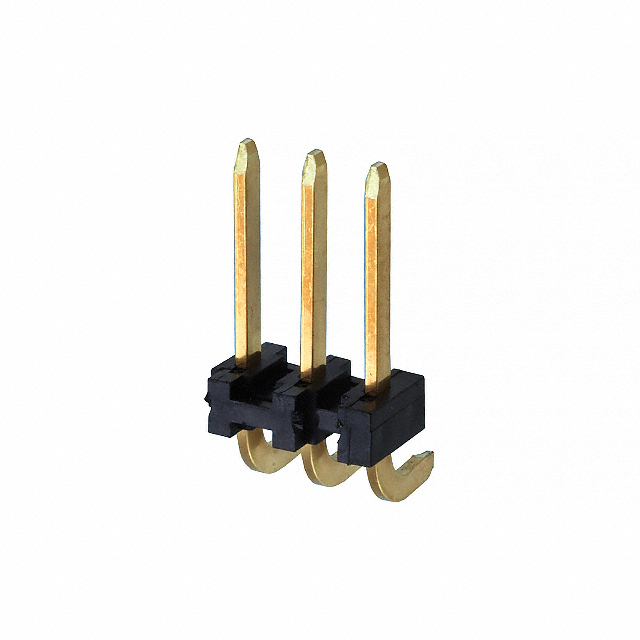

CONN HEADER R/A 3POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87258-3

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 3POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87258-3	87258 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	15 µin	15 µin
Contact Finish Thickness - Post	0.38 µm	0.38 µm
Contact Length - Mating [x]	0.5 in	0.5 in
Contact Length - Mating [x]	12.7 mm	12.7 mm
Contact Length - Post [x]	0.15 in	0.15 in
Contact Length - Post [x]	3.81 mm	3.81 mm
Contact Material	Brass	Brass
Contact Shape	Rectangular	Rectangular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6.35 mm	6.35 mm
Insulation Height	0.25 in	0.25 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	-	2 - 8
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87258 Series

CONN HEADER R/A 3POS 3.96MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Contact Material	Contact Finish - Mating	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Shrouding	Fastening Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Material	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Contact Shape	Contact Finish - Post	Number of Positions
TE Connectivity AMP Connectors 87258-3	-65 ░C	105 ░C	Through Hole, Right Angle	1	Brass	Gold	Board to Board, Cable	15 µin	0.38 µm	Black	Unshrouded	Push-Pull	0.156 in	3.96 mm	UL94 V-0	Thermoplastic	5 A	0.15 in	3.81 mm	0.5 in	12.7 mm	Male Pin	15 µin	0.38 µm	Header	All	6.35 mm	0.25 in	Solder	Rectangular	Gold
TE Connectivity AMP Connectors 87258-5	-65 ░C	105 ░C	Through Hole, Right Angle	1	Brass	Gold	Board to Board, Cable	15 µin	0.38 µm	Black	Unshrouded	Push-Pull	0.156 in	3.96 mm	UL94 V-0	Thermoplastic	5 A	0.15 in	3.81 mm	0.5 in	12.7 mm	Male Pin	15 µin	0.38 µm	Header	All	6.35 mm	0.25 in	Solder	Rectangular	Gold
TE Connectivity AMP Connectors 87258-8	-65 ░C	105 ░C	Through Hole, Right Angle	1	Brass	Gold	Board to Board, Cable	15 µin	0.38 µm	Black	Unshrouded	Push-Pull	0.156 in	3.96 mm	UL94 V-0	Thermoplastic	5 A	0.15 in	3.81 mm	0.5 in	12.7 mm	Male Pin	15 µin	0.38 µm	Header	All	6.35 mm	0.25 in	Solder	Rectangular	Gold	8
TE Connectivity AMP Connectors 87258-2	-65 ░C	105 ░C	Through Hole, Right Angle	1	Brass	Gold	Board to Board, Cable	15 µin	0.38 µm	Black	Unshrouded	Push-Pull	0.156 in	3.96 mm	UL94 V-0	Thermoplastic	5 A	0.15 in	3.81 mm	0.5 in	12.7 mm	Male Pin	15 µin	0.38 µm	Header	All	6.35 mm	0.25 in	Solder	Rectangular	Gold	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2480	$ 2.85

Description

General part information

87258 Series

Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm)
