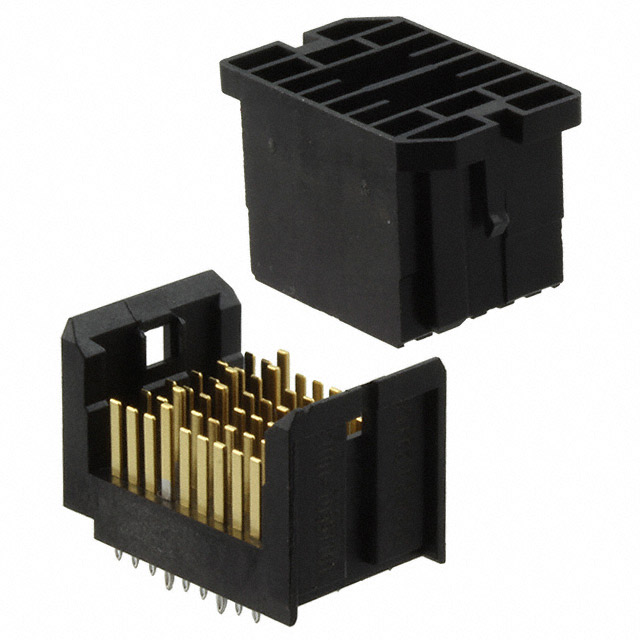

10116601-101LF

Active

Amphenol ICC (FCI)

CONN HEADER HIGH SPEED 54POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER HIGH SPEED 54POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10116601-101LF

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Material Flammability Rating	Color	Number of Positions	Number of Rows	Termination	Number of Columns	Connector Style	Features	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Connector Usage
Amphenol ICC (FCI) 10116601-111LF	85 °C	-55 °C	All	UL94 V-0	Black	54	9	Press-Fit	6	High Speed	Protective Cover	Through Hole	Gold	0.055 in	1.4 mm	Header Male Pins
Amphenol ICC (FCI) 10116601-101LF	85 °C	-55 °C	All	UL94 V-0	Black	54		Press-Fit	6	High Speed		Through Hole	Gold	0.055 in	1.4 mm	Header Male Pins	Daughtercard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

54 Connector Header, Male Pins Through Hole Black High Speed
