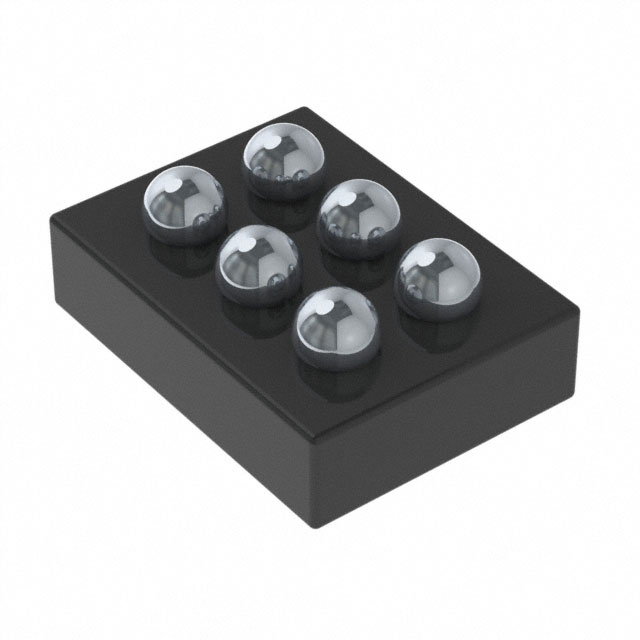

TCR15AG10,LF

Active

Toshiba Semiconductor and Storage

IC REG LINEAR 1V 1.5A 6WCSPF

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC REG LINEAR 1V 1.5A 6WCSPF

Technical Specifications

Parameters and characteristics for this part

Specification	TCR15AG10,LF

Control Features	Enable
Current - Output	1.5 A
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	WLCSP, 6-XFBGA
Protection Features	Under Voltage Lockout (UVLO), Over Temperature, Over Current
PSRR	95 dB
Supplier Device Package	6-WCSPF (0.80x1.2)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1 V
Voltage Dropout (Max) [Max]	0.228 V

Part	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Control Features	Current - Output	Mounting Type	Output Type	Voltage - Input (Max) [Max]	PSRR	Number of Regulators	Protection Features	Voltage - Output (Min/Fixed)	Supplier Device Package	Package / Case	Voltage Dropout (Max) [Max]
Toshiba Semiconductor and Storage TCR15AG10,LF	Positive	-40 °C	85 °C	Enable	1.5 A	Surface Mount	1.81 mOhm	5.5 V	95 dB	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 V	6-WCSPF (0.80x1.2)	6-XFBGA WLCSP	0.228 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A 6-WCSPF (0.80x1.2)
