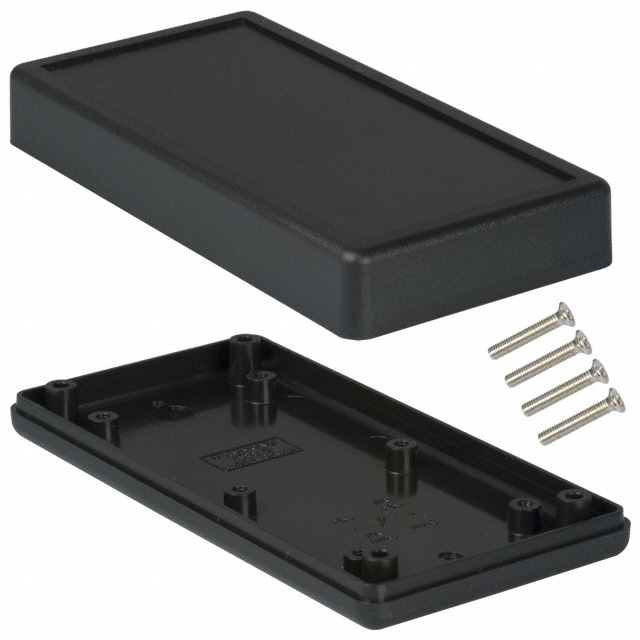

Specification	1599BBK

Area (L x W)	13.1 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Flame Retardant, Card Guides, PCB Supports
Height	1.004 in
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP54
Size / Dimension Length	5.118 in
Size / Dimension Width	2.559 in
Weight	0.188 lb

1599 Series

Part	Area (L x W)	Features	Material	Thickness	Design	Height	Ratings	Material Flammability Rating	Size / Dimension Width	Size / Dimension Length	Color	Container Type	Weight
Hammond Manufacturing 1599TABMBKBAT	35.6 in²	9V and AA Battery Compartment Flame Retardant PCB Supports	ABS	0.225 in	End Panel(s) Hand Held Split Sides	1.063 in	IP54	UL94 V-0	5.315 in	6.692 in	Black	Box
Hammond Manufacturing 1599HBKBAT	37.5 in²	Battery Door Card Guides Flame Retardant PCB Supports	ABS		Hand Held Split Sides	1.762 in	IP54	UL94 V-0	4.331 in	8.661 in	Black	Box	0.556 lb
Hammond Manufacturing 1599HGY	37.5 in²	Card Guides Flame Retardant PCB Supports	ABS		Hand Held Split Sides	1.762 in	IP54	UL94 V-0	4.331 in	8.661 in	Gray	Box	0.544 lb
Hammond Manufacturing 1599HTSGY	37.5 in²	Card Guides Flame Retardant PCB Supports	ABS		Hand Held Slanted Top Split Sides	1.762 in		UL94 V-0	4.331 in	8.661 in	Gray	Box	0.44 lb
Hammond Manufacturing 1599KSTLGY	47.7 in²	PCB Supports	ABS		Hand Held Slanted Top Split Sides	1.811 in			5.512 in	8.661 in	Gray	Box	0.5 lbs
Hammond Manufacturing 1599BSGY	13.1 in²	Card Guides PCB Supports	ABS		Hand Held Split Sides	1.004 in	IP54		2.559 in	5.118 in	Gray	Box	0.163 lb
Hammond Manufacturing 1599BBKBATCP	13.1 in²	Battery Door Card Guides Flame Retardant PCB Supports Pocket Clip	ABS		Hand Held Split Sides	1.004 in	IP54	UL94 V-0	2.559 in	5.118 in	Black	Box
Hammond Manufacturing 1599HTSBK	37.5 in²	Card Guides Flame Retardant PCB Supports	ABS		Hand Held Slanted Top Split Sides	1.762 in		UL94 V-0	4.331 in	8.661 in	Black	Box	0.469 lb
Hammond Manufacturing 1599KBKBAT	47.7 in²	Battery Door Card Guides Flame Retardant PCB Supports	ABS		Hand Held Split Sides	1.575 in	IP54	UL94 V-0	5.512 in	8.661 in	Black	Box	0.653 lb
Hammond Manufacturing 1599KSGYBAT	47.7 in²	Battery Door Card Guides PCB Supports	ABS		Hand Held Split Sides	1.575 in	IP54		5.512 in	8.661 in	Gray	Box	0.575 lb
