1599KBKBAT

Active

Hammond Manufacturing

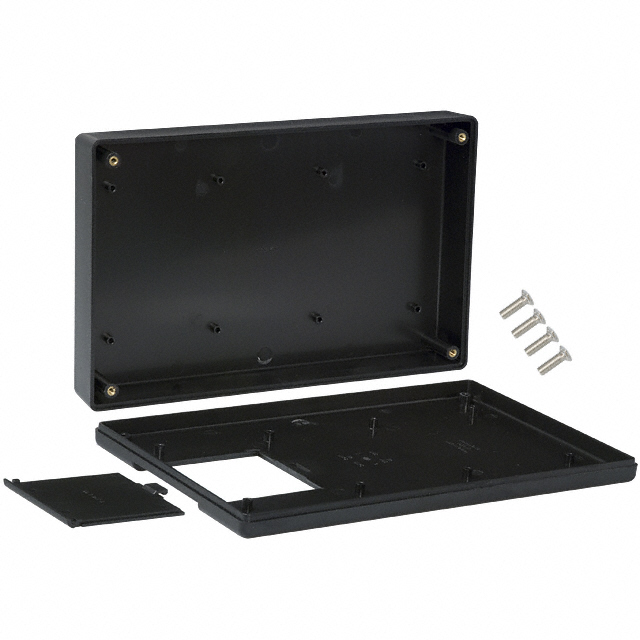

ENCLOSURES FOR SINGLE BOARD COMPUTING FR ABS W/BATT. DOOR 1.6X5.5X8.66" BLACK

1599KBKBAT

Active

Hammond Manufacturing

ENCLOSURES FOR SINGLE BOARD COMPUTING FR ABS W/BATT. DOOR 1.6X5.5X8.66" BLACK

Description Specifications Series Pricing CAD Documents

Description

General part information

1599 Series

Box ABS Black Hand Held, Split Sides 8.661" L x 5.512" W (219.99mm x 140.00mm) X 1.575" (40.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	1599KBKBAT

Area (L x W)	47.7 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Flame Retardant, PCB Supports, Card Guides, Battery Door
Height	1.575 in
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP54
Size / Dimension Length	8.661 in
Size / Dimension Width	5.512 in
Weight	0.653 lb

1599 Series

Part	Area (L x W)	Features	Material	Thickness	Design	Height	Ratings	Material Flammability Rating	Size / Dimension Width	Size / Dimension Length	Color	Container Type	Weight
Hammond Manufacturing 1599TABMBKBAT	35.6 in²	9V and AA Battery Compartment Flame Retardant PCB Supports	ABS	0.225 in	End Panel(s) Hand Held Split Sides	1.063 in	IP54	UL94 V-0	5.315 in	6.692 in	Black	Box
Hammond Manufacturing 1599HBKBAT	37.5 in²	Battery Door Card Guides Flame Retardant PCB Supports	ABS		Hand Held Split Sides	1.762 in	IP54	UL94 V-0	4.331 in	8.661 in	Black	Box	0.556 lb
Hammond Manufacturing 1599HGY	37.5 in²	Card Guides Flame Retardant PCB Supports	ABS		Hand Held Split Sides	1.762 in	IP54	UL94 V-0	4.331 in	8.661 in	Gray	Box	0.544 lb
Hammond Manufacturing 1599HTSGY	37.5 in²	Card Guides Flame Retardant PCB Supports	ABS		Hand Held Slanted Top Split Sides	1.762 in		UL94 V-0	4.331 in	8.661 in	Gray	Box	0.44 lb
Hammond Manufacturing 1599KSTLGY	47.7 in²	PCB Supports	ABS		Hand Held Slanted Top Split Sides	1.811 in			5.512 in	8.661 in	Gray	Box	0.5 lbs
Hammond Manufacturing 1599BSGY	13.1 in²	Card Guides PCB Supports	ABS		Hand Held Split Sides	1.004 in	IP54		2.559 in	5.118 in	Gray	Box	0.163 lb
Hammond Manufacturing 1599BBKBATCP	13.1 in²	Battery Door Card Guides Flame Retardant PCB Supports Pocket Clip	ABS		Hand Held Split Sides	1.004 in	IP54	UL94 V-0	2.559 in	5.118 in	Black	Box
Hammond Manufacturing 1599HTSBK	37.5 in²	Card Guides Flame Retardant PCB Supports	ABS		Hand Held Slanted Top Split Sides	1.762 in		UL94 V-0	4.331 in	8.661 in	Black	Box	0.469 lb
Hammond Manufacturing 1599KBKBAT	47.7 in²	Battery Door Card Guides Flame Retardant PCB Supports	ABS		Hand Held Split Sides	1.575 in	IP54	UL94 V-0	5.512 in	8.661 in	Black	Box	0.653 lb
Hammond Manufacturing 1599KSGYBAT	47.7 in²	Battery Door Card Guides PCB Supports	ABS		Hand Held Split Sides	1.575 in	IP54		5.512 in	8.661 in	Gray	Box	0.575 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1599 Hand Held Series and Accessories
