917-43-108-41-005000
ActiveMill-Max Manufacturing Corp.

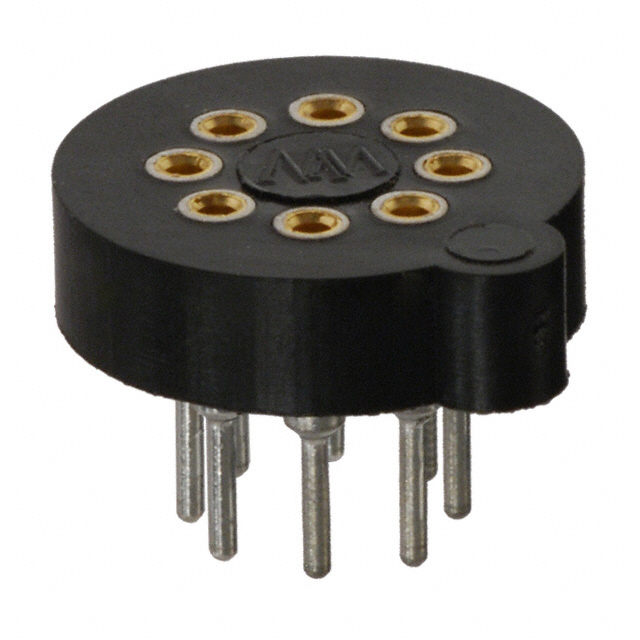

CONN TRANSIST TO-5 8POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
917-43-108-41-005000
ActiveMill-Max Manufacturing Corp.
CONN TRANSIST TO-5 8POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 917-43-108-41-005000 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Brass Alloy |
| Current Rating (Amps) | 3 A |
| Features | Closed Frame |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | Transistor, TO-5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.91 | |
| 10 | $ 2.64 | |||
| 25 | $ 2.50 | |||
| 50 | $ 2.45 | |||
| 100 | $ 2.33 | |||
| 250 | $ 2.04 | |||
| 500 | $ 1.98 | |||
| 1000 | $ 1.69 | |||
| 2500 | $ 1.57 | |||
Description
General part information
917-43 Series
8 (Round) Pos Transistor, TO-5 Socket Gold Through Hole
Documents
Technical documentation and resources
No documents available
