RR9LD6000T00CIMR6B
ActiveGlobTek, Inc.
AC/DC DSKTP/WALL MT ADAPT 9V 54W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RR9LD6000T00CIMR6B
ActiveGlobTek, Inc.
AC/DC DSKTP/WALL MT ADAPT 9V 54W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RR9LD6000T00CIMR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class I), Desktop |
| Input Type | Cord, Multi-Blade |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug Kit, 1.3mm x 3.5mm |
| Power (Watts) | 54 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.63 in |
| Size / Dimension [x] | 117.5 mm |
| Size / Dimension [y] | 53.5 mm |
| Size / Dimension [y] | 2.11 in |
| Size / Dimension [z] | 36.6 mm |
| Size / Dimension [z] | 1.44 " |
| Standard Number | 62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.50 | |
| 5 | $ 18.72 | |||
| 10 | $ 18.39 | |||
| 25 | $ 17.97 | |||
| 50 | $ 17.66 | |||
| 100 | $ 17.35 | |||
| 250 | $ 16.95 | |||
| 500 | $ 16.66 | |||
Description
General part information
RR9LD6000 Series

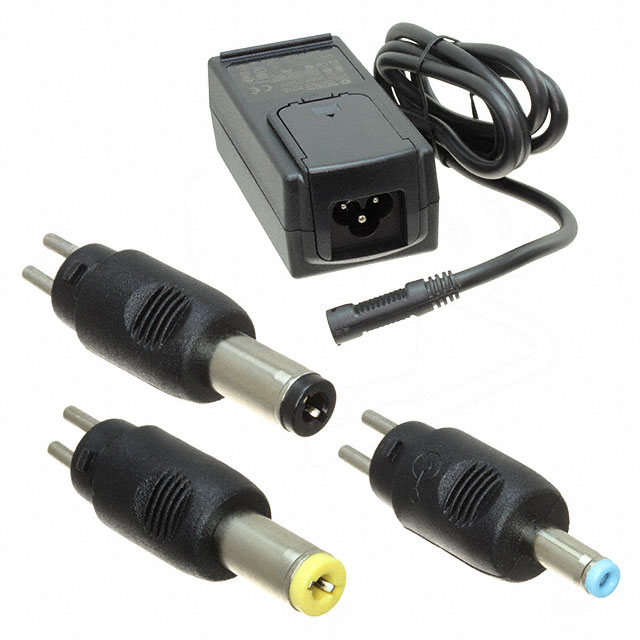

9V 54 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord, Multi-Blade (Sold Separately) Input
