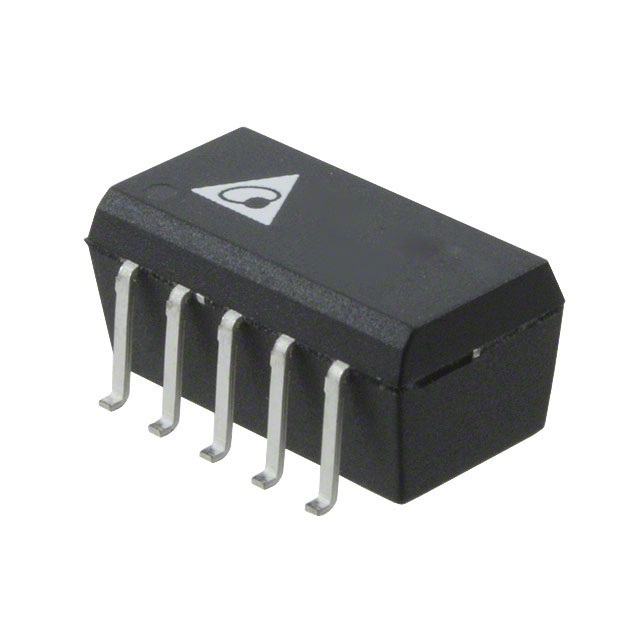

SA01D0515A

Obsolete

Delta Electronics

DC DC CONVERTER +/-15V 1W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER +/-15V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-5V 1W

Part	Package / Case	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Type	Features	Voltage - Input (Max) [Max]	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Delta Electronics SA01D0505A	8-SMD Module	2	100 mA	100 mA	Isolated Module	SCP	5.5 V	Medical	Surface Mount	85 °C	-40 °C	-5 V	1000 V	4.5 V	75 %	10.7 mm	0.42 "	12.8 mm	0.5 in	7 mm	0.28 "	5 V
Delta Electronics SA01D1212A	8-SMD Module	2			Isolated Module	SCP	13.2 V	Medical	Surface Mount	85 °C	-40 °C	-12 V	1000 V	10.8 V	80 %	10.7 mm	0.42 "	12.8 mm	0.5 in	7 mm	0.28 "	12 V	42 mA	42 mA
Delta Electronics SA01D0515A	8-SMD Module	2		33 mA	Isolated Module	SCP	5.5 V	Medical	Surface Mount	85 °C	-40 °C	-15 V	1000 V	4.5 V	79 %	10.7 mm	0.42 "	12.8 mm	0.5 in	7 mm	0.28 "	15 V
