H2MXH-5018G
ActiveAssmann WSW Components
DIP CABLE - HDM50H/AE50G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2MXH-5018G
ActiveAssmann WSW Components
DIP CABLE - HDM50H/AE50G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2MXH-5018G |
|---|---|
| Cable Termination | IDC |
| Connector Type | DIP to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.1") |
H2MXH-50 Series
| Part | Shielding | Number of Positions | Pitch - Connector | Pitch - Connector | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Length | Length | Length | Contact Finish | Usage | Pitch - Cable | Pitch - Cable | Number of Rows | Cable Termination | Length [x] | Length [x] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components | Unshielded | 50 | 0.1 in | 2.54 mm | DIP to Cable | 0.76 Ám | 30 Áin | 152.4 mm | 6 " | 0.5 ' | Gold | Board In Socket (0.1") | 0.05 " | 1.27 mm | 2 | IDC | |||
Assmann WSW Components | Unshielded | 50 | 0.1 in | 2.54 mm | DIP to Cable | 0.76 Ám | 30 Áin | Gold | Board In Socket (0.1") | 0.05 " | 1.27 mm | 2 | IDC | 457.2 mm | 1.5 ft | Multiple Ribbon | |||
Assmann WSW Components | Unshielded | 50 | 0.1 in | 2.54 mm | DIP to Cable | 0.76 Ám | 30 Áin | Gold | Board In Socket (0.1") | 0.05 " | 1.27 mm | 2 | IDC | 457.2 mm | 1.5 ft | ||||
Assmann WSW Components | Unshielded | 50 | 0.1 in | 2.54 mm | DIP to Cable | 0.76 Ám | 30 Áin | 152.4 mm | 6 " | 0.5 ' | Gold | Board In Socket (0.1") | 0.05 " | 1.27 mm | 2 | IDC | Multiple Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.09 | |
| 10 | $ 3.71 | |||
| 25 | $ 3.52 | |||
| 50 | $ 3.44 | |||
| 100 | $ 3.27 | |||
| 250 | $ 2.86 | |||
| 500 | $ 2.78 | |||
| 1000 | $ 2.37 | |||
| 2500 | $ 2.21 | |||
Description
General part information
H2MXH-50 Series

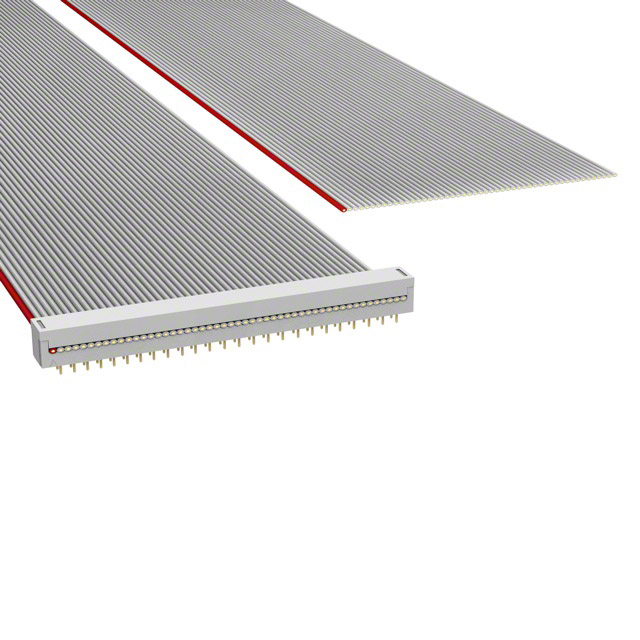

50 Position Cable Assembly Rectangular DIP to Cable 1.50' (457.20mm)
