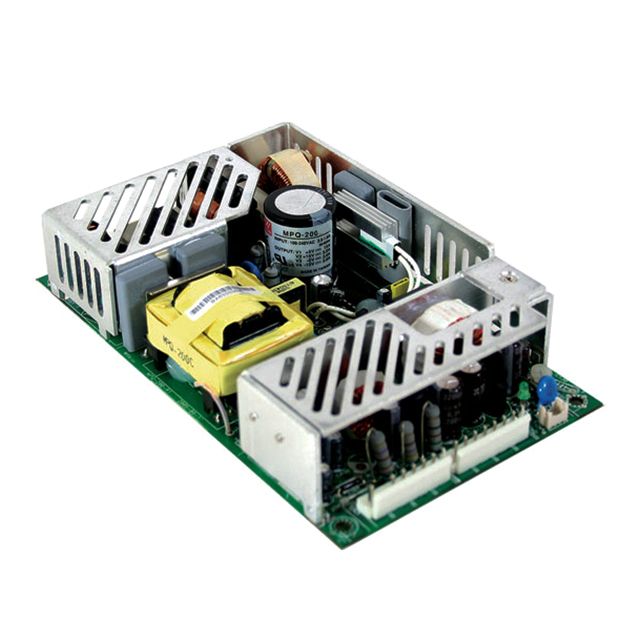

MPQ-200D
ActiveMEAN WELL USA Inc.
AC/DC CNVRTR 5V 24V +/-12V 139W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ-200D |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 12 A |
| Current - Output 2 | 2.3 A |
| Current - Output 4 | 1 A |
| Efficiency | 79 % |
| Features | Remote On/Off, Universal Input, Remote Sense, Adjustable Output |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 139 W |
| Power (Watts) | 171 W |
| Size / Dimension [x] | 7 " |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [y] | 107.2 mm |
| Size / Dimension [y] | 4.22 " |
| Size / Dimension [z] | 35.6 mm |
| Size / Dimension [z] | 1.4 " |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 97.18 | |
| 5 | $ 91.55 | |||
| 10 | $ 89.23 | |||
| 25 | $ 86.25 | |||
Description
General part information
MPQ-200 Series
Open Frame AC DC Converters 4 Output 5V 24V 12V -12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
