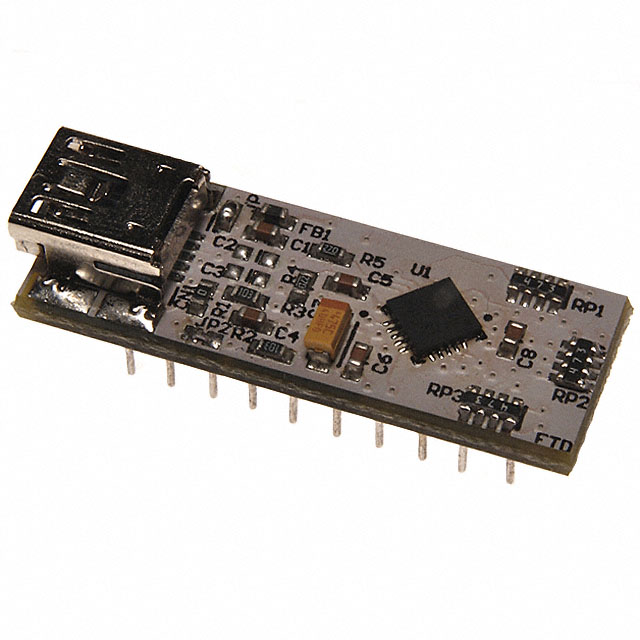

Specification	UMFT231XA-01

Contents	Board
Embedded	Yes, ASIC
Function	USB 2.0 to UART
Primary Attributes	Mini-B Socket, USB Full Speed, 0.3" Wide 20-Pin DIP Socket
Secondary Attributes	USB Charging Detection
Supplied Contents	Board(s)
Type	Interface
Utilized IC / Part	FT231X

UMFT231 Series

Part	Supplied Contents	Type	Contents	Function	Embedded	Utilized IC / Part	Secondary Attributes	Primary Attributes
FTDI, Future Technology Devices International Ltd UMFT231XA-02	Board(s)	Interface	Board	USB 2.0 to UART	ASIC Yes	FT231X
FTDI, Future Technology Devices International Ltd UMFT231XA-01	Board(s)	Interface	Board	USB 2.0 to UART	ASIC Yes	FT231X	USB Charging Detection	0.3" Wide 20-Pin DIP Socket Mini-B Socket USB Full Speed
FTDI, Future Technology Devices International Ltd UMFT231XC-01	Board(s)	Interface	Board	USB 2.0 to UART Bridge	ASIC Yes	FT231X		Configured with Lithium-Ion Battery Charger Mini-B Socket USB Full Speed
FTDI, Future Technology Devices International Ltd UMFT231XE-01	Board(s)	Interface	Board	USB 2.0 to UART	ASIC Yes	FT231X	USB Charging Detection	0.6" Wide 20-Pin DIP Socket Mini-B Socket USB Full Speed
