M2013TXW13

Obsolete

NKK Switches

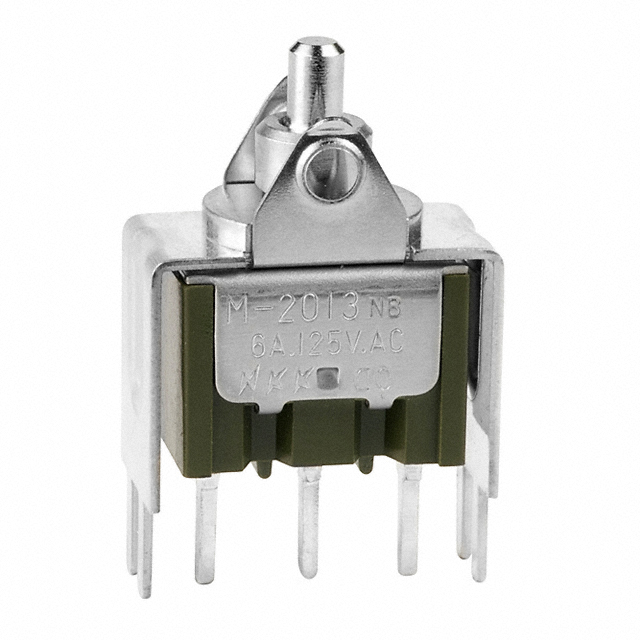

SWITCH ROCKER SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2013TXW13

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2013TXW13

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2013TX Series

Part	Mounting Type	Circuit	Termination Style	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Features	Actuator Type	Approval Agency
NKK Switches M2013TXW13-DF	Through Hole	SPDT	PC Pin	25000 Steps	125 V	3 A 6 A	Green	On-Off-On	No Marking	-30 ░C	85 °C	30 V	Epoxy Sealed Terminals	Concave (Standard V)	CSA UL
NKK Switches M2013TXG45-DC	Right Angle Through Hole Vertical	SPDT	PC Pin	50000 Cycles	28 V	0.4 VA	Red	On-Off-On	No Marking	-30 ░C	85 °C	28 V	Epoxy Sealed Terminals	Concave (Standard V)	CSA UL
NKK Switches M2013TXW13	Through Hole	SPDT	PC Pin	25000 Steps	125 V	3 A 6 A		On-Off-On	Varies by Cap	-30 ░C	85 °C	30 V	Epoxy Sealed Terminals	Actuator Arm Cap Required	CSA UL
NKK Switches M2013TXG13-FA	Through Hole	SPDT	PC Pin	50000 Cycles	28 V	0.4 VA	Black	On-Off-On	No Marking	-30 ░C	85 °C	28 V	Epoxy Sealed Terminals	Concave (Standard V)	CSA UL
NKK Switches M2013TXG13-GA	Through Hole	SPDT	PC Pin	50000 Cycles	28 V	0.4 VA	Black	On-Off-On	No Marking	-30 ░C	85 °C	28 V	Epoxy Sealed Terminals	Paddle	CSA UL
NKK Switches M2013TXW13-DC	Through Hole	SPDT	PC Pin	25000 Steps	125 V	3 A 6 A	Red	On-Off-On	No Marking	-30 ░C	85 °C	30 V	Epoxy Sealed Terminals	Concave (Standard V)	CSA UL
NKK Switches M2013TXG13-EA
NKK Switches M2013TXW41-DH	Right Angle Through Hole Vertical	SPDT	PC Pin	25000 Steps	125 V	3 A 6 A		On-Off-On	No Marking	-30 ░C	85 °C	30 V	Epoxy Sealed Terminals	Concave (Standard V)	CSA UL
NKK Switches M2013TXW13-GH	Through Hole	SPDT	PC Pin	25000 Steps	125 V	3 A 6 A		On-Off-On	No Marking	-30 ░C	85 °C	30 V	Epoxy Sealed Terminals	Paddle	CSA UL
NKK Switches M2013TXW41/CUL
