151250-8322-RB

Active

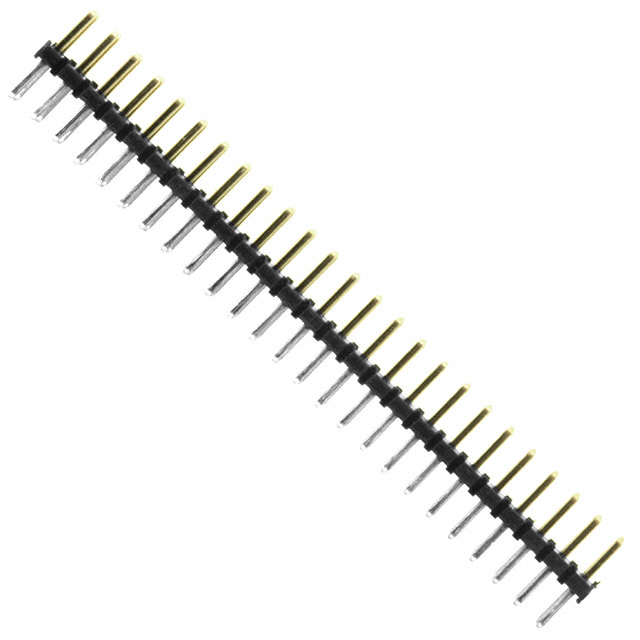

CONN HEADER VERT 50POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

151250-8322-RB

Active

CONN HEADER VERT 50POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

151250 Series

Connector Header Through Hole 50 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	151250-8322-RB	151250 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.13 in	0.13 - 0.152 in
Contact Length - Mating	3.3 mm	3.3 - 3.86 mm
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.06 in	0.06 - 0.165 in
Insulation Height [z]	1.52 mm	1.52 - 4.2 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	50	50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.307 in	0.307 - 0.329 in
Overall Contact Length	7.8 mm	7.8 - 8.36 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

151250 Series

CONN HEADER VERT 50POS 2MM

Part	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Termination	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Material	Contact Length - Post	Contact Length - Post	Contact Shape	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Type	Style	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [z]	Insulation Height [z]	Shrouding
3M 151250-8322-TB	0.079 in	2 mm	Header	Solder	Tin-Lead	0.13 in	3.3 mm	105 ░C	-55 °C	Push-Pull	Copper Alloy	0.118 in	3 mm	Square	Through Hole	200 µin	5.08 µm	30 Áin	0.76 Ám	50	UL94 V-0	Black	Gold	2	0.307 in	7.8 mm	Male Pin	Board to Board, Cable	All	0.079 in	2 mm	0.06 in	1.52 mm	Unshrouded
3M 151250-8322-RB	0.079 in	2 mm	Header	Solder	Tin	0.13 in	3.3 mm	105 ░C	-55 °C	Push-Pull	Copper Alloy	0.118 in	3 mm	Square	Through Hole	200 µin	5.08 µm	30 Áin	0.76 Ám	50	UL94 V-0	Black	Gold	2	0.307 in	7.8 mm	Male Pin	Board to Board, Cable	All	0.079 in	2 mm	0.06 in	1.52 mm	Unshrouded
3M 151250-7422-RB	0.079 in	2 mm	Header	Solder	Tin	0.152 in	3.86 mm	105 ░C	-55 °C	Push-Pull	Copper Alloy	0.118 in	3 mm	Square	Through Hole, Right Angle	200 µin	5.08 µm	30 Áin	0.76 Ám	50	UL94 V-0	Black	Gold	2			Male Pin	Board to Board, Cable	All	0.079 in	2 mm	0.165 in	4.2 mm	Unshrouded
3M 151250-8422-TB	0.079 in	2 mm	Header	Solder	Tin-Lead	0.152 in	3.86 mm	105 ░C	-55 °C	Push-Pull	Copper Alloy	0.118 in	3 mm	Square	Through Hole	200 µin	5.08 µm	30 Áin	0.76 Ám	50	UL94 V-0	Black	Gold	2	0.329 in	8.36 mm	Male Pin	Board to Board, Cable	All	0.079 in	2 mm	0.06 in	1.52 mm	Unshrouded
