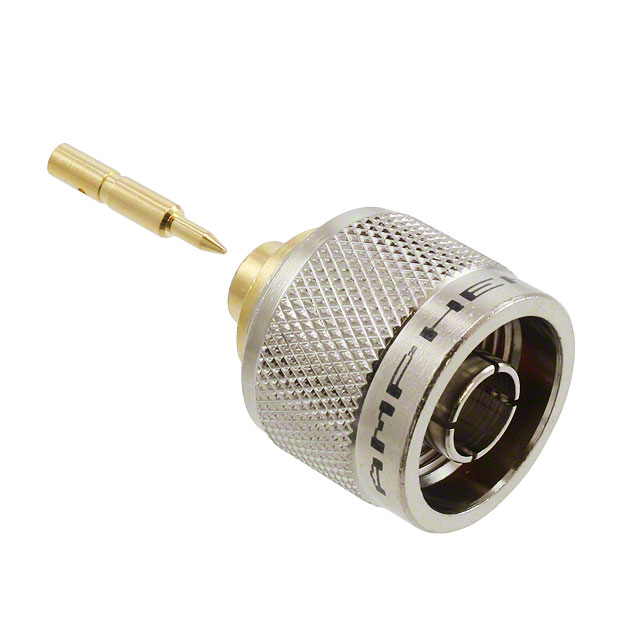

082-6124

Active

Amphenol RF

CONNECTOR: N; PLUG; MALE; STRAIGHT; 50Ω; SOLDERING; FOR CABLE; PTFE

Search across all available documentation for this part.

Active

Amphenol RF

CONNECTOR: N; PLUG; MALE; STRAIGHT; 50Ω; SOLDERING; FOR CABLE; PTFE

Technical Specifications

Parameters and characteristics for this part

Specification	082-6124

Body Finish	Nickel
Body Material	Brass
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Connector Type	Number of Ports	Shield Termination	Frequency - Max [Max]	Insertion Loss	Body Finish	Body Material	Connector Style	Center Contact Material	Dielectric Material	Mounting Type	Mating Cycles	Contact Termination	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Housing Color	Cable Group	Cable Group	Impedance	Ingress Protection
Amphenol RF 082-6124	Male Pin Plug	1	Solder	11 GHz	0.15 dB	Nickel	Brass	N Type	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	500	Solder	1500 V	-65 ░C	165 °C	Gold	Silver	0.25 in	RG-401	50 Ohms	Weatherproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
