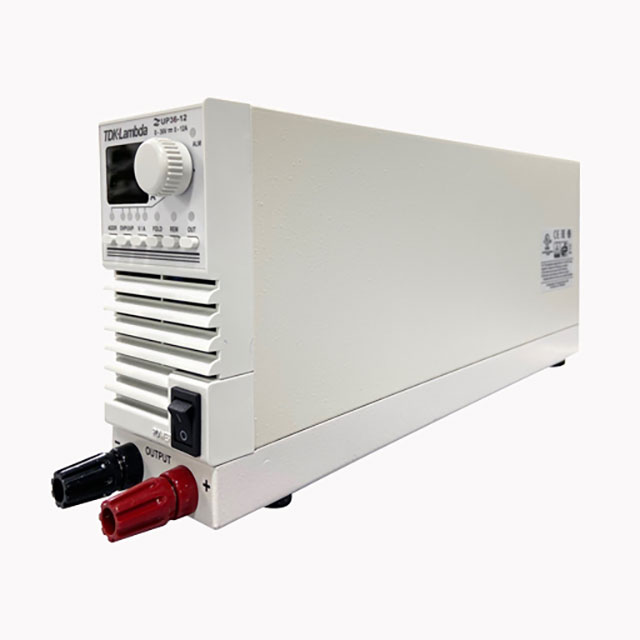

ZUP10-40/LU

Obsolete

TDK-LAMBDA

BENCH TOP POWER SUPPLIES

Search across all available documentation for this part.

Obsolete

TDK-LAMBDA

BENCH TOP POWER SUPPLIES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZUP10-40/LU	ZUP1040 Series

Accuracy - Voltmeter; Ammeter	0.02% + 8mV	0.02% + 8mV
Current - Output [Max]	40 A	40 A
Current - Output [Min]	0 A	0 A
Current Regulation - Line	2 mA	2 mA
Current Regulation - Line	0.01 %	0.01 %
Current Regulation - Load	0.01 %, 5 mA	0.01 - 5 %
Display Type	Digital	Digital
Features	Memory, RS232 and RS485 Interface, Programmable	Memory, RS232 and RS485 Interface, Programmable
Number of Characters	3	3
Number of Outputs	2	1 - 2
Ripple	5 mV	5 mV
Size / Dimension [x]	13.78 in	13.78 in
Size / Dimension [x]	350 mm	350 mm
Size / Dimension [y]	124 mm	124 mm
Size / Dimension [y]	4.882 in	4.882 in
Size / Dimension [z]	70 mm	70 mm
Size / Dimension [z]	2.756 in	2.756 in
Type	Bench (AC to DC)	Bench (AC to DC)
Voltage - Output [Max]	10 V	10 V
Voltage - Output [Min]	0 VDC	0 VDC
Voltage - Supply [Max]	265 VAC	265 VAC
Voltage - Supply [Min]	85 VAC	85 VAC
Voltage Regulation - Line	1 mV, 0.005 %	0.005 - 1 mV
Voltage Regulation - Load	2 mV	2 mV
Weight	7.1 lbs	7.1 lbs
Weight	3.2 kg	3.2 kg

BENCH TOP POWER SUPPLIES

Part	Number of Characters	Current Regulation - Load	Accuracy - Voltmeter; Ammeter	Current - Output [Min]	Current - Output [Max]	Ripple	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Display Type	Current Regulation - Line	Current Regulation - Line	Voltage Regulation - Line	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Number of Outputs	Voltage Regulation - Load	Weight	Weight
TDK-LAMBDA ZUP10-40/LUW	3	0.01 %, 5 mA	0.02% + 8mV	0 A	40 A	5 mV	0 VDC	10 V	124 mm	13.78 in	70 mm	4.882 in	350 mm	2.756 in	Digital	2 mA	0.01 %	0.005 %, 1 mV	Memory, Programmable, RS232 and RS485 Interface	265 VAC	85 VAC	Bench (AC to DC)	1	2 mV	7.1 lbs	3.2 kg
TDK-LAMBDA ZUP10-40/LU	3	0.01 %, 5 mA	0.02% + 8mV	0 A	40 A	5 mV	0 VDC	10 V	124 mm	13.78 in	70 mm	4.882 in	350 mm	2.756 in	Digital	2 mA	0.01 %	0.005 %, 1 mV	Memory, Programmable, RS232 and RS485 Interface	265 VAC	85 VAC	Bench (AC to DC)	2	2 mV	7.1 lbs	3.2 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0 ~ 10VDC Output Bench (AC to DC) Power Supply Digital 0 ~ 40A Output 400W Features Memory, Programmable, RS232 and RS485 Interface
