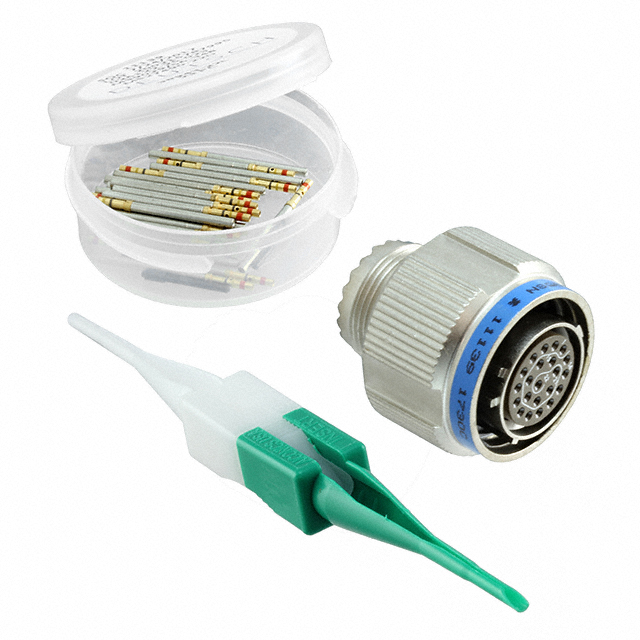

D38999/26FC35SN - D38999/26FC35SN

D38999/26FC35SN

Active
TE Connectivity Raychem Cable Protection

CONN CIRCULAR SKT 22 POS CRIMP ST CABLE MOUNT 22 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMIL-DTL-38999 III Quick Ref Guide
D38999/26FC35SN - D38999/26FC35SN

D38999/26FC35SN

Active
TE Connectivity Raychem Cable Protection

CONN CIRCULAR SKT 22 POS CRIMP ST CABLE MOUNT 22 TERMINAL 1 PORT

Deep-Dive with AI

DocumentsDatasheetMIL-DTL-38999 III Quick Ref Guide

Technical Specifications

Parameters and characteristics for this part

SpecificationD38999/26FC35SN
ApplicationsIndustrial, Aviation, Communication Systems, Military
ColorSilver
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact Finish Thickness - Mating1.27 µm
Contact Finish Thickness - Mating50 µin
Contact MaterialCopper Alloy
Current Rating (Amps)5 A
FeaturesSelf Locking
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialThermoplastic
Mounting TypeFree Hanging (In-Line)
Number of Positions22 positions
Operating Temperature [Max]200 °C
Operating Temperature [Min]-65 ░C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-38999 Series III
Shell FinishNickel
Shell MaterialAluminum
Shell Size - Insert [Max]35
Shell Size - Insert [Min]13
Shell Size, MILC
ShieldingShielded
TerminationCrimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 182.89
2$ 175.58
8$ 168.55
21$ 161.81
64$ 155.34
DigikeyBox 1$ 38.04
10$ 35.32
25$ 32.96
50$ 30.90
100$ 27.47
Bulk 1$ 154.75
1$ 2780.33
1$ 284.41
10$ 248.17
10$ 147.38
25$ 240.48

Description

General part information

D38999/26FC Series

22 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Datasheet

MIL-DTL-38999 III Quick Ref Guide

Datasheet
