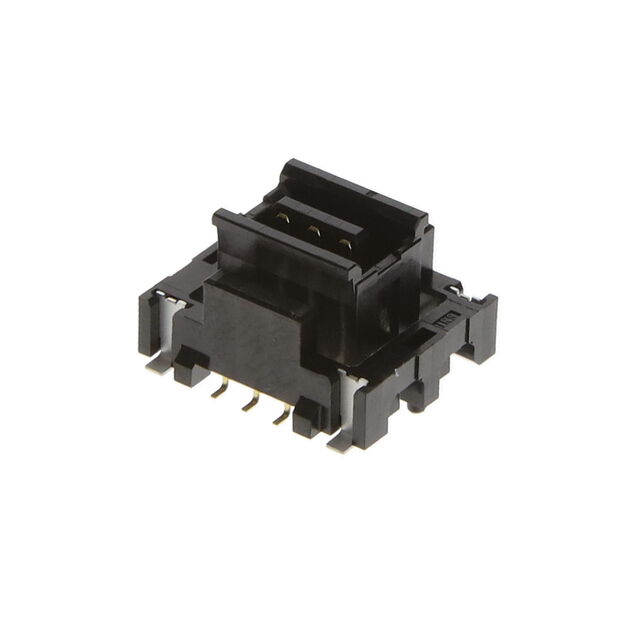

IMSA-10120B-06Y913

Active

IRISO USA Inc.

CONN HEADER VERT B-TO-B FLOATING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10120 Series Product Information Sheet

IMSA-10120B-06Y913

Active

IRISO USA Inc.

CONN HEADER VERT B-TO-B FLOATING

Deep-Dive with AI

DocumentsDatasheet 10120 Series Product Information Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IMSA-10120B-06Y913	IMSA-1012 Series

Connector Type	-	Socket, Center Strip Contacts
Contact Finish	Gold	Gold
Contact Finish Thickness	4 Áin	4 Áin
Contact Finish Thickness	0.1 Ám	0.1 Ám
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	8.95 mm	8.35 - 16.35 mm
Height Above Board	0.352 in	0.329 - 0.644 in
Height Above Board	-	7.95 - 12.35 mm
Height Above Board	-	0.313 - 0.486 "
Mounting Type	Surface Mount	Surface Mount
Number of Positions	6	6 - 30
Number of Rows	2	2
Pitch [x]	0.079 in	0.016 - 0.079 in
Pitch [x]	2 mm	0.4 - 2 mm

IMSA-1012 Series

CONN HEADER VERT B-TO-B FLOATING

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Features	Height Above Board	Height Above Board	Connector Type	Height Above Board [z]	Height Above Board [z]
IRISO USA Inc. IMSA-10120B-20Z04-GFN4	20	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
IRISO USA Inc. IMSA-10120S-06Z10-GFN4	6			Surface Mount	0.079 in	2 mm	2		Board Guide, Solder Retention	8.35 mm	0.329 in	Socket, Center Strip Contacts
IRISO USA Inc. IMSA-10120B-30Z04-GFN4	30	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
IRISO USA Inc. IMSA-10120B-10Z04-GFN4	10	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
IRISO USA Inc. IMSA-10126B-30H-GFN4	30			Surface Mount	0.016 in	0.4 mm	2	Gold	Solder Retention
IRISO USA Inc. IMSA-10120S-06Z18-GFN4	6	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	16.35 mm	0.644 in	Socket, Center Strip Contacts
IRISO USA Inc. IMSA-10120S-20Z14-GFN4	20	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention			Socket, Center Strip Contacts	12.35 mm	0.486 "
IRISO USA Inc. IMSA-10120B-30Y913	30	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
IRISO USA Inc. IMSA-10120B-10Z02-GFN4	10	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention				7.95 mm	0.313 in
IRISO USA Inc. IMSA-10120B-06Y913	6	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.88
		10	$ 2.44
		25	$ 2.29
		50	$ 2.18
		100	$ 2.08
	Tape & Reel (TR)	250	$ 1.95
		500	$ 1.85
		750	$ 1.80
		1250	$ 1.74
		1750	$ 1.70
		2500	$ 1.65
		6250	$ 1.55

Description

General part information

IMSA-1012 Series

6 Position Connector Plug, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

10120 Series Product Information Sheet

Datasheet
