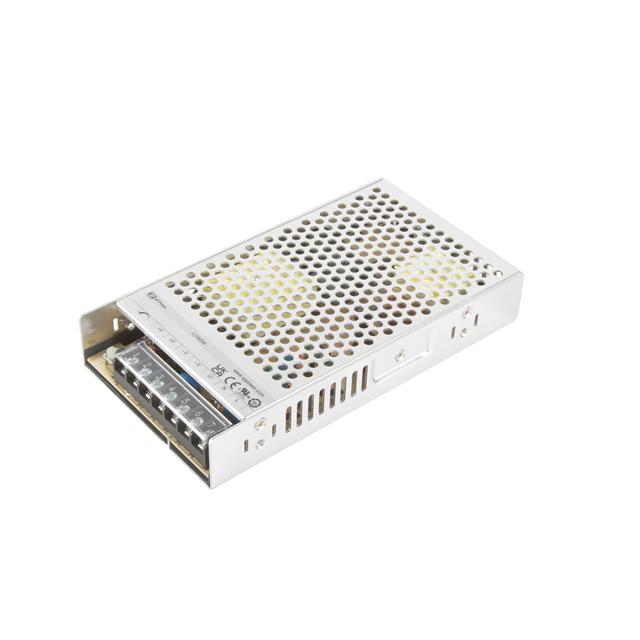

LCW200PS24

XP POWER

AC/DC CONVERTER 24V 202W

Search across all available documentation for this part.

XP POWER

AC/DC CONVERTER 24V 202W

Technical Specifications

Parameters and characteristics for this part

Specification	LCW200PS24

Applications	Industrial, ITE (Commercial)
Approval Agency	UKCA, CE, EN, UL
Current - Output 1	8.4 A
Efficiency	90 %
Features	Adjustable Output, DC Input Capable, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Size / Dimension [x]	7.05 in
Size / Dimension [x]	179 mm
Size / Dimension [y]	99 mm
Size / Dimension [y]	3.9 in
Size / Dimension [z]	1.18 in
Size / Dimension [z]	30 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Mounting Type	Minimum Load Required	Current - Output 1	Type	Standard Number	Approval Agency	Features	Voltage - Output 1
XP POWER LCW200PS24	1	85 VAC 120 VDC	305 VAC 430 VDC	Industrial ITE (Commercial)	90 %	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	4000 V	Chassis Mount		8.4 A	Enclosed	62368-1	CE EN UKCA UL	Adjustable Output DC Input Capable PFC	24 V
XP POWER LCW200PS48	1	85 VAC 120 VDC	305 VAC 430 VDC	Industrial ITE (Commercial)	89 %	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	4000 V	Chassis Mount		4.2 A	Enclosed	62368-1	CE EN UKCA UL	Adjustable Output DC Input Capable PFC	48 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.90

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 305 VAC, 120 ~ 430 VDC Input
