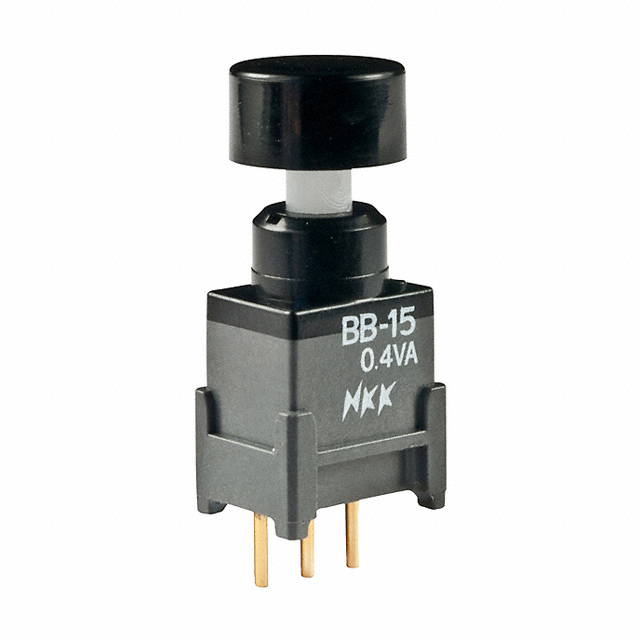

BB15AP-HA

Active

NKK Switches

PUSHBUTTON SWITCH, BB SERIES, SPDT, ON-(ON), ROUND, BLACK

Search across all available documentation for this part.

Active

NKK Switches

PUSHBUTTON SWITCH, BB SERIES, SPDT, ON-(ON), ROUND, BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Type	Features	Circuit	Color - Actuator/Cap	Voltage Rating - DC	Electrical Life	Voltage Rating - AC	Actuator Marking	Termination Style	Actuator Type	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function
NKK Switches BB15AP-HC	Standard	Antistatic	SPDT	Red	28 V	50000 Cycles	28 V	No Marking	PC Pin	Button Round	0.4 VA	Through Hole	-30 ░C	85 °C	On-Mom
NKK Switches BB15AP-FC	Standard	Antistatic	SPDT	Red	28 V	50000 Cycles	28 V	No Marking	PC Pin	Button Round	0.4 VA	Through Hole	-30 ░C	85 °C	On-Mom
NKK Switches BB15AP-HA	Standard	Antistatic	SPDT	Black	28 V	50000 Cycles	28 V	No Marking	PC Pin	Button Round	0.4 VA	Through Hole	-30 ░C	85 °C	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole
