1057359-1

Active

TE Connectivity Aerospace, Defense and Marine

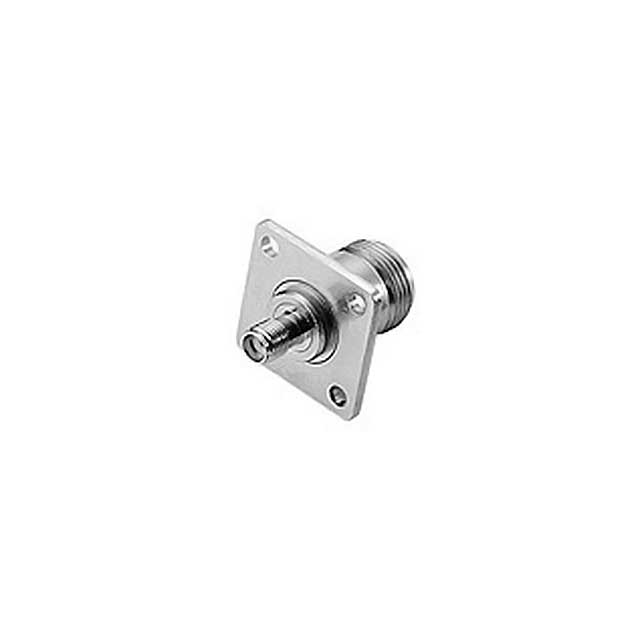

CONN ADAPT SMA JACK TO N JACK

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN ADAPT SMA JACK TO N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	1057359-1

Adapter Series	N to OSM
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Mounting Feature	Flange
Style	Straight

CONN ADAPT SMA JACK TO N JACK

Part	Mounting Feature	Conversion Type	Impedance	Adapter Type	Dielectric Material	Adapter Series	Convert To (Adapter End)	Center Contact Plating	Convert From (Adapter End)	Center Contact Material	Center Gender	Style	Body Material
TE Connectivity Aerospace, Defense and Marine 1057359-1	Flange	Between Series	50 Ohms	Jack to Jack	Polytetrafluoroethylene (PTFE)	N to OSM	Female Socket, N Jack	Gold	Female Socket, SMA Jack	Beryllium Copper	Female to Female	Straight	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 115.07

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket 50 Ohms
