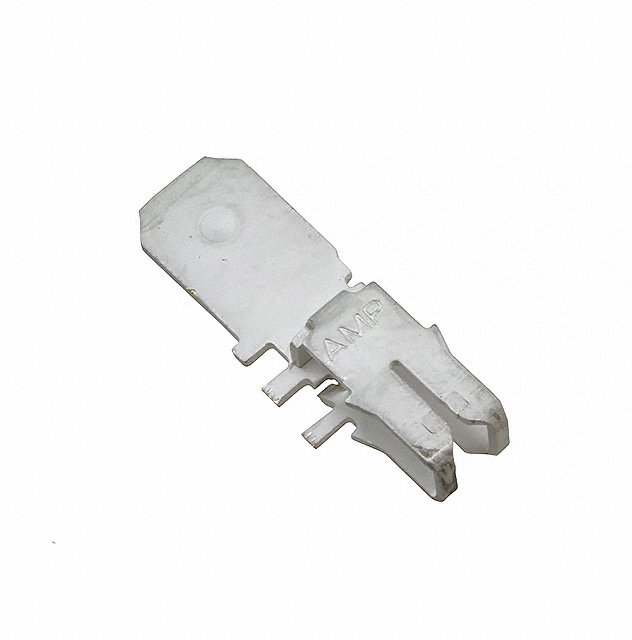

1217004-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 20-23.5AWG QC .187
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217004-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 20-23.5AWG QC .187
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217004-1 |
|---|---|
| Features | QC .187 |
| Size | 5 |
| Style | 187 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.26 | |||
| 2500 | $ 0.25 | |||
| Tape & Reel (TR) | 11000 | $ 0.16 | ||
1217004 Series
CONN MAG TERM 20-23.5AWG QC .187
| Part | Size | Style | Terminal Type | Termination | Features | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217004-1 | 5 | 187 | Box IDC | Quick Connect | QC .187 | 20 AWG | 24 AWG |
Description
General part information
1217004 Series
Terminal Magnetic Connector 187 20-23.5 AWG Quick Connect
