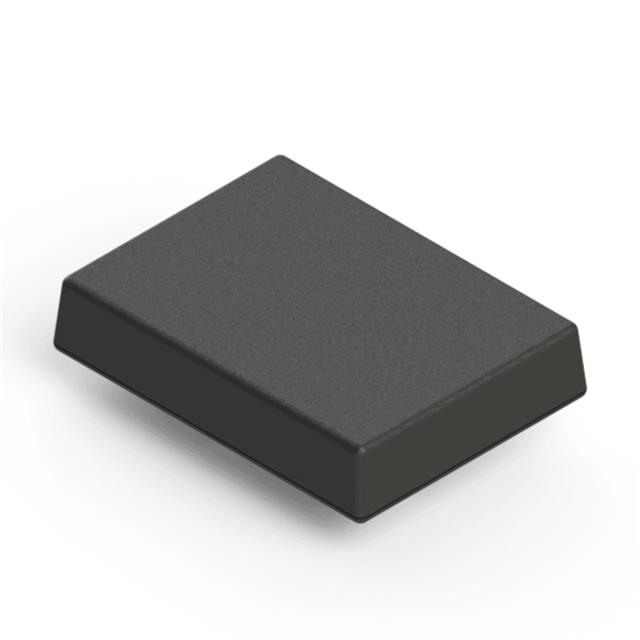

031W,BK

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031W,BK	031W Series

Area (L x W)	92 cm˛	92 cm˛
Area (L x W)	14.2 in²	14.2 in²
Color	Black	Almond, Black, Gray
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports, Wall Mount	PCB Supports, Wall Mount
Height [z]	22.86 mm	22.86 mm
Height [z]	0.9 in	0.9 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.15 lbs	0.15 lbs
Weight	68.04 g	68.04 g

BOX ABS ALMOND 4.38"L X 3.25"W

Part	Ratings	Thickness	Thickness	Material Flammability Rating	Height [z]	Height [z]	Color	Area (L x W)	Area (L x W)	Weight	Weight	Container Type	Material	Features	Design
Serpac 031WI,AL	IP40, NEMA 1	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Almond	14.2 in²	92 cm˛	0.15 lbs	68.04 g	Box	Plastic, ABS	PCB Supports, Wall Mount
Serpac 031WI,BK	IP40, NEMA 1	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Black	14.2 in²	92 cm˛	0.15 lbs	68.04 g	Box	Plastic, ABS	PCB Supports, Wall Mount
Serpac 031W,GY	IP40, NEMA 1	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Gray	14.2 in²	92 cm˛	0.15 lbs	68.04 g	Box	Plastic, ABS	PCB Supports, Wall Mount
Serpac 031W,AL	IP40, NEMA 1	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Almond	14.2 in²	92 cm˛	0.15 lbs	68.04 g	Box	Plastic, ABS	PCB Supports, Wall Mount
Serpac 031WI,GY	IP40, NEMA 1	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Gray	14.2 in²	92 cm˛	0.15 lbs	68.04 g	Box	Plastic, ABS	PCB Supports, Wall Mount
Serpac 031W,BK	IP40, NEMA 1	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Black	14.2 in²	92 cm˛	0.15 lbs	68.04 g	Box	Plastic, ABS	PCB Supports, Wall Mount	Cover Included, Hand Held

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.80

General part information

Box Plastic, ABS Black Hand Held, Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 0.900" (22.86mm)
