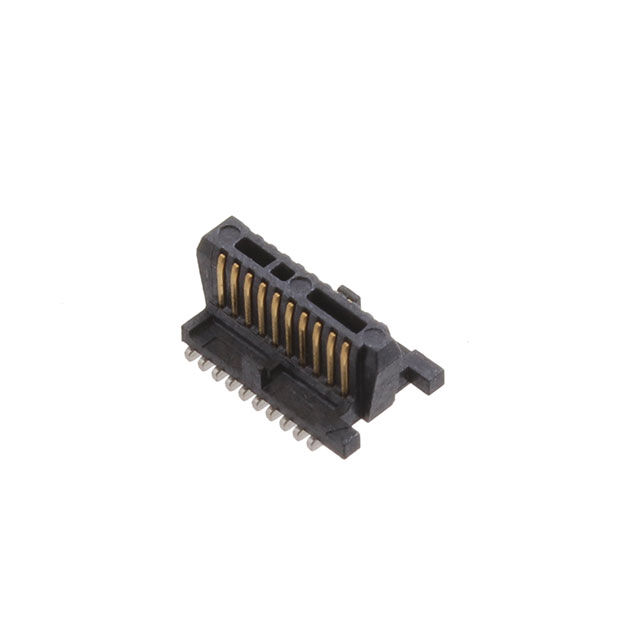

ST5-10-1.00-L-D-P-TR

Active

Samtec Inc.

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ST5-10-1.00-L-D-P-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	3.07 mm
Height Above Board	0.121 in
Mated Stacking Heights	4 mm, 4.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Connector Type	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. ST5-10-1.50-L-D-P-TR	Surface Mount	Gold	0.5 mm	0.02 in	20	2	Header Center Strip Contacts	Pick and Place	0.141 in	3.58 mm	4.5 mm 5 mm	10 Áin	0.25 Ám
Samtec Inc. ST5-10-1.00-L-D-P-TR	Surface Mount	Gold	0.5 mm	0.02 in	20	2	Header Center Strip Contacts	Pick and Place	0.121 in	3.07 mm	4 mm 4.5 mm	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Header, Center Strip Contacts Surface Mount Gold
