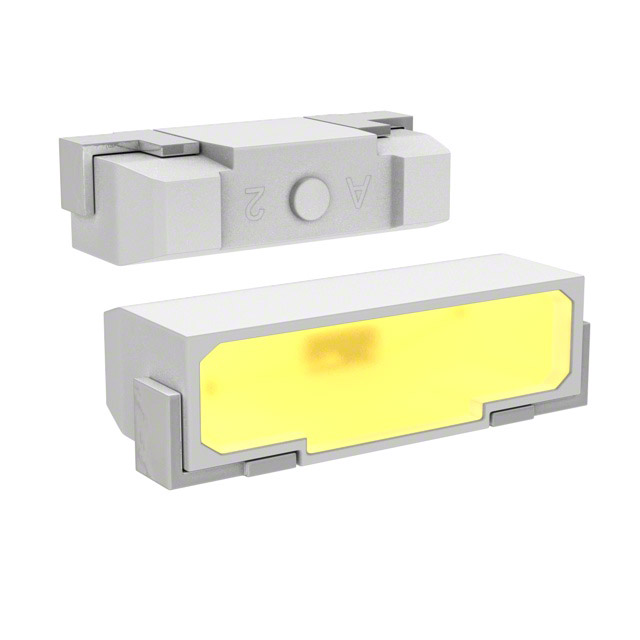

Specification	SMS1105UWDN

Color	White, Neutral
Configuration	Standard
Current - Test	20 mA
Height (Max)	0.8 mm
Lens Color	Yellow
Lens Length	2.5 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Diffused
Lens Width	0.8 mm
Millicandela Rating	1200 mcd
Mounting Type	Right Angle, Surface Mount
Package / Case	2-SMD, J-Lead
Package Name	2-PLCC
Size / Dimension Length	2.8 mm
Size / Dimension Width	1.2 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.4 V
Wavelength - Dominant (Color Temperature)	5500 K

SMS1105 Series

Part	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Transparency	Current - Test	Configuration	Lens Style	Color	Lens Color	Lens Length	Lens Width	Wavelength - Dominant	Size / Dimension Length	Size / Dimension Width	Height (Max)	Millicandela Rating	Package Name	Viewing Angle	Package / Case	Wavelength - Dominant (Color Temperature)
Bivar Inc. SMS1105YC	Right Angle Surface Mount	2.2 V	Clear	20 mA	Standard	Flat Top Rectangle	Yellow	Colorless	2.5 mm	0.8 mm	592 nm	2.8 mm	1.2 mm	0.8 mm	250 mcd	2-PLCC	120 °	2-SMD J-Lead
Bivar Inc. SMS1105RC	Right Angle Surface Mount	2.2 V	Clear	20 mA	Standard	Flat Top Rectangle	Red	Colorless	2.5 mm	0.8 mm	626 nm	2.8 mm	1.2 mm	0.8 mm	250 mcd	2-PLCC	120 °	2-SMD J-Lead
Bivar Inc. SMS1105UWDW	Right Angle Surface Mount	3.2 V	Diffused	20 mA	Standard	Flat Top Rectangle	Warm White		2.5 mm	0.8 mm		2.8 mm	1.2 mm	0.8 mm	1750 mcd	2-PLCC	120 °	2-SMD J-Lead
Bivar Inc. SMS1105PGC	Right Angle Surface Mount	3.1 V	Clear	20 mA	Standard	Flat Top Rectangle	Green	Colorless	2.5 mm	0.8 mm	529 nm	2.8 mm	1.2 mm	0.8 mm	2100 mcd	2-PLCC	120 °	2-SMD J-Lead
Bivar Inc. SMS1105BWC	Right Angle Surface Mount	3.1 V 3.4 V	Clear	20 mA	Standard	Flat Top Rectangle	Blue	Colorless	2.5 mm	0.8 mm	471 nm	2.8 mm	1.2 mm	0.8 mm	450 mcd 650 mcd	2-PLCC	120 °	2-SMD J-Lead
Bivar Inc. SMS1105OC	Right Angle Surface Mount	2.2 V	Clear	20 mA	Standard	Flat Top Rectangle	Orange	Colorless	2.5 mm	0.8 mm	606 nm	2.8 mm	1.2 mm	0.8 mm	600 mcd	2-PLCC	120 °	2-SMD J-Lead
Bivar Inc. SMS1105UWDN	Right Angle Surface Mount	3.4 V	Diffused	20 mA	Standard	Flat Top Rectangle	Neutral White	Yellow	2.5 mm	0.8 mm		2.8 mm	1.2 mm	0.8 mm	1200 mcd	2-PLCC	120 °	2-SMD J-Lead	5500 K
Bivar Inc. SMS1105UWDC	Right Angle Surface Mount	3.4 V	Diffused	20 mA	Standard	Flat Top Rectangle	Cool White	Yellow	2.5 mm	0.8 mm		2.8 mm	1.2 mm	0.8 mm	1200 mcd	2-PLCC	120 °	2-SMD J-Lead	8000 K
