AXK720347A

Active

Panasonic Electric Works

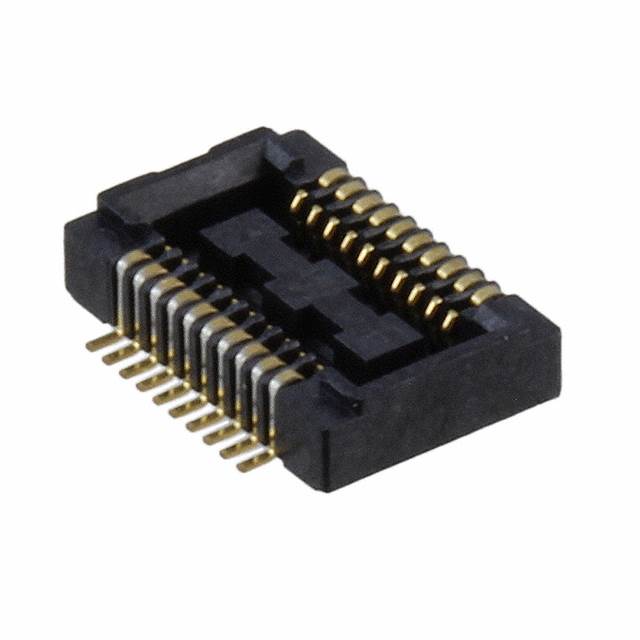

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK720347A

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board [z]	2.41 mm
Height Above Board [z]	0.095 in
Mated Stacking Heights [z]	3 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Rows	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Positions	Mounting Type	Connector Type	Mated Stacking Heights [z]	Pitch [x]	Pitch [x]
Panasonic Electric Works AXK720347A	2	2.41 mm	0.095 in	Gold	20	Surface Mount	Center Strip Outer Edge Contacts Socket	2.5 mm 3 mm	0.016 in	0.4 mm
Panasonic Electric Works AXK720347GA	2	2.41 mm	0.095 in	Gold	20	Surface Mount	Center Strip Outer Edge Contacts Socket	2.5 mm 3 mm	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
