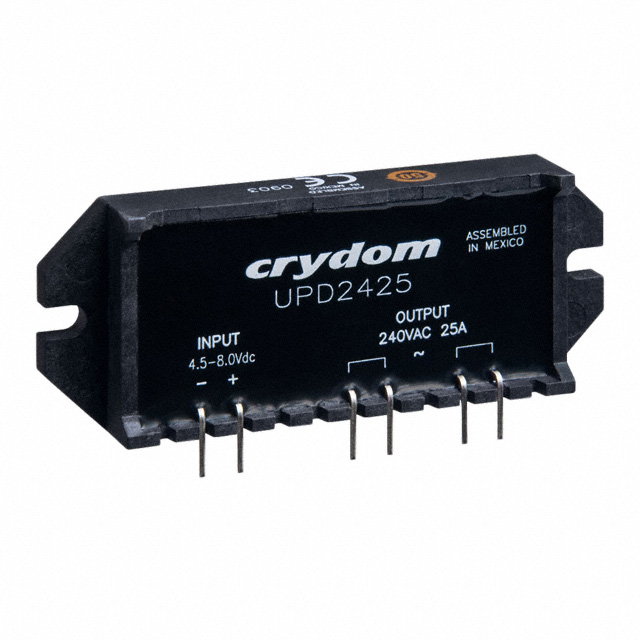

UPD2425-10

Active

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 68.19

General part information

Solid State SPST-NO (1 Form A) 6-SIP

Technical documentation and resources

Part	Approval Agency	Output Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Load Current	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Supplier Device Package
Sensata-Crydom UPD2425F	CE, cURus	AC, Zero Cross	Chassis Mount	-40 °C	80 C	24 V	280 V	25 A	Module	32 V	3 V	Quick Connect - 0.250" (6.3mm)
Sensata-Crydom UPD2425F-10	CE, cURus	AC	Chassis Mount	-40 °C	80 C	24 V	280 V	25 A	Module	32 V	3 V	Quick Connect - 0.250" (6.3mm)
Sensata-Crydom UPD2425-10	CE, cURus	AC	Through Hole	-40 °C	80 C	24 V	280 V	25 A	6-SIP	32 V	3 V	PC Pin	6-SIP
