Specification	MDH7045C-101MA=P3

Current - Saturation (Isat)	0.75 mA
Current Rating	800 mA
DC Resistance (DCR)	290 mOhm
Height - Seated (Max)	0.189 in
Inductance	100 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension Length	0.291 in
Size / Dimension Width	0.276 in
Tolerance	20 %
Type	Drum Core, Wirewound

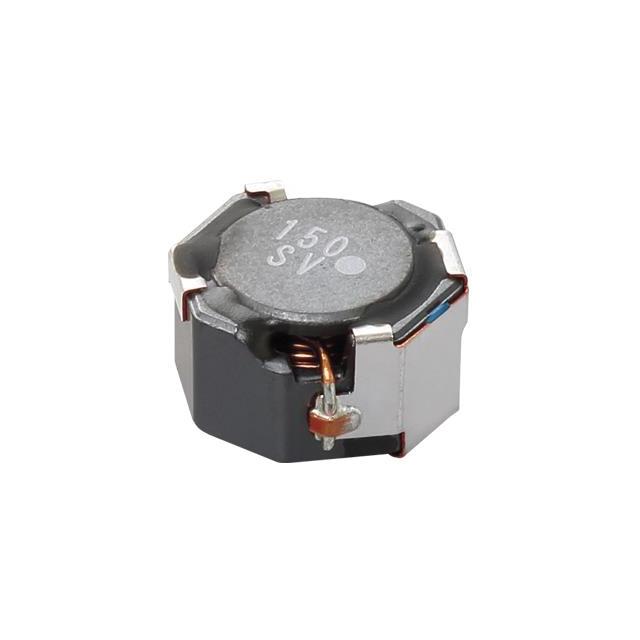

MDH Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Inductance	Type	Current - Saturation (Isat)	Shielding	Package / Case	Current Rating	Size / Dimension Length	Size / Dimension Width	Tolerance	Material - Core	DC Resistance (DCR) (Max)	Inductance Frequency - Test	Mounting Type	Ratings	Height - Seated (Max)	DC Resistance (DCR)
Murata Electronics MDH10060C-101MB=P3	150 °C	-55 °C	100 µH	Wirewound	1.5 A	Unshielded	Nonstandard	1.2 A	0.398 in	0.394 in	20 %	Ferrite	208 mOhm	100 kHz	Surface Mount	AEC-Q200	0.248 in
Murata Electronics MDH10060C-4R7NB=P3	150 °C	-55 °C	4.7 µH	Wirewound	7.1 A	Unshielded	Nonstandard	4.8 A	0.398 in	0.394 in	30 %	Ferrite	14.3 mOhm	100 kHz	Surface Mount	AEC-Q200	0.248 in
Murata Electronics MDH10060C-6R8NB=P3	150 °C	-55 °C	6.8 µH	Wirewound	6 A	Unshielded	Nonstandard	3.8 A	0.398 in	0.394 in	30 %	Ferrite	18.2 mOhm	100 kHz	Surface Mount	AEC-Q200	0.248 in
Murata Electronics MDH10060C-101MA=P3	150 °C	-55 °C	100 µH	Drum Core Wirewound	1.3 A	Shielded	Nonstandard	1.3 A	0.398 in	0.394 in	20 %	Ferrite		100 kHz	Surface Mount	AEC-Q200	0.248 in	150 mOhm
Murata Electronics MDH6045C-220MB=P3	150 °C	-55 °C	22 µH	Drum Core Wirewound	1.2 A	Shielded	Nonstandard	1.4 A	0.248 in	0.236 in	20 %	Ferrite		100 kHz	Surface Mount	AEC-Q200	0.189 in	80 mOhm
Murata Electronics MDH10060C-150MB=P3	150 °C	-55 °C	15 µH	Wirewound	3.9 A	Unshielded	Nonstandard	2.8 A	0.398 in	0.394 in	20 %	Ferrite	35.1 mOhm	100 kHz	Surface Mount	AEC-Q200	0.248 in
Murata Electronics MDH7045C-101MA=P3	150 °C	-55 °C	100 µH	Drum Core Wirewound	0.75 mA	Shielded	Nonstandard	800 mA	0.291 in	0.276 in	20 %	Ferrite		100 kHz	Surface Mount	AEC-Q200	0.189 in	290 mOhm
Murata Electronics MDH7045C-150MA=P3	150 °C	-55 °C	15 µH	Drum Core Wirewound	2 A	Shielded	Nonstandard	1.8 A	0.291 in	0.276 in	20 %	Ferrite		100 kHz	Surface Mount	AEC-Q200	0.189 in	55 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MDH7045C-101MA=P3 Datasheet (PDF)
