Specification	4-644467-4

Cable Termination	IDC
Color	Red
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	80 µin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Feed Through, Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	1
Pitch	0.156 in
Wire Gauge	22 AWG
Wire Type	Ribbon Cable, Discrete

644467 Series

Part	Number of Rows	Connector Type	Features	Cable Termination	Color	Mounting Type	Contact Finish Thickness	Contact Type	Fastening Type	Wire Gauge	Wire Type	Number of Positions	Pitch	Contact Finish

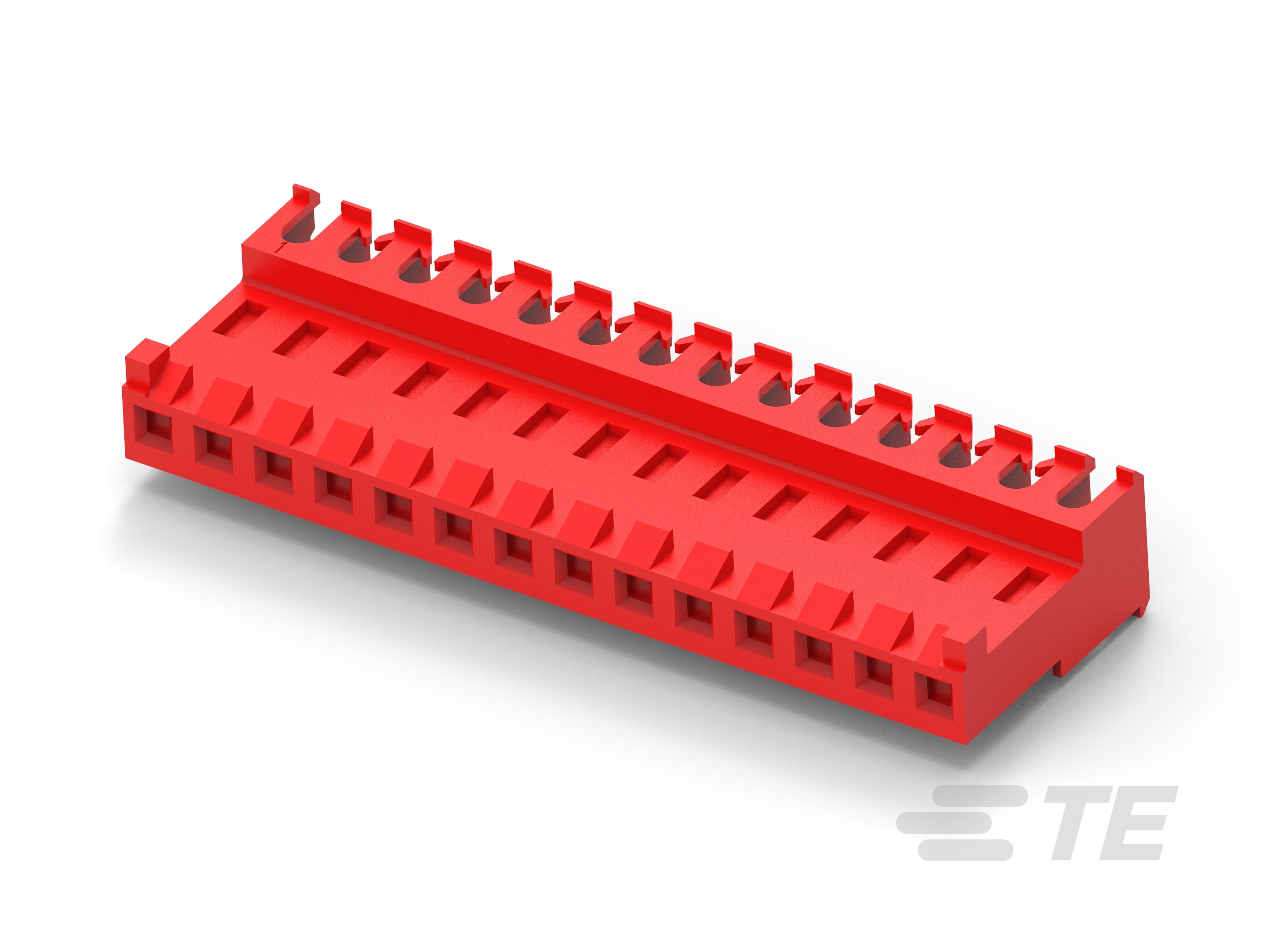

TE Connectivity AMP Connectors 4-644467-4	1	Receptacle	Feed Through Polarizing Key	IDC	Red	Free Hanging (In-Line)	80 µin	Female Socket	Locking Ramp	22 AWG	Discrete Ribbon Cable	14	0.156 in	Tin

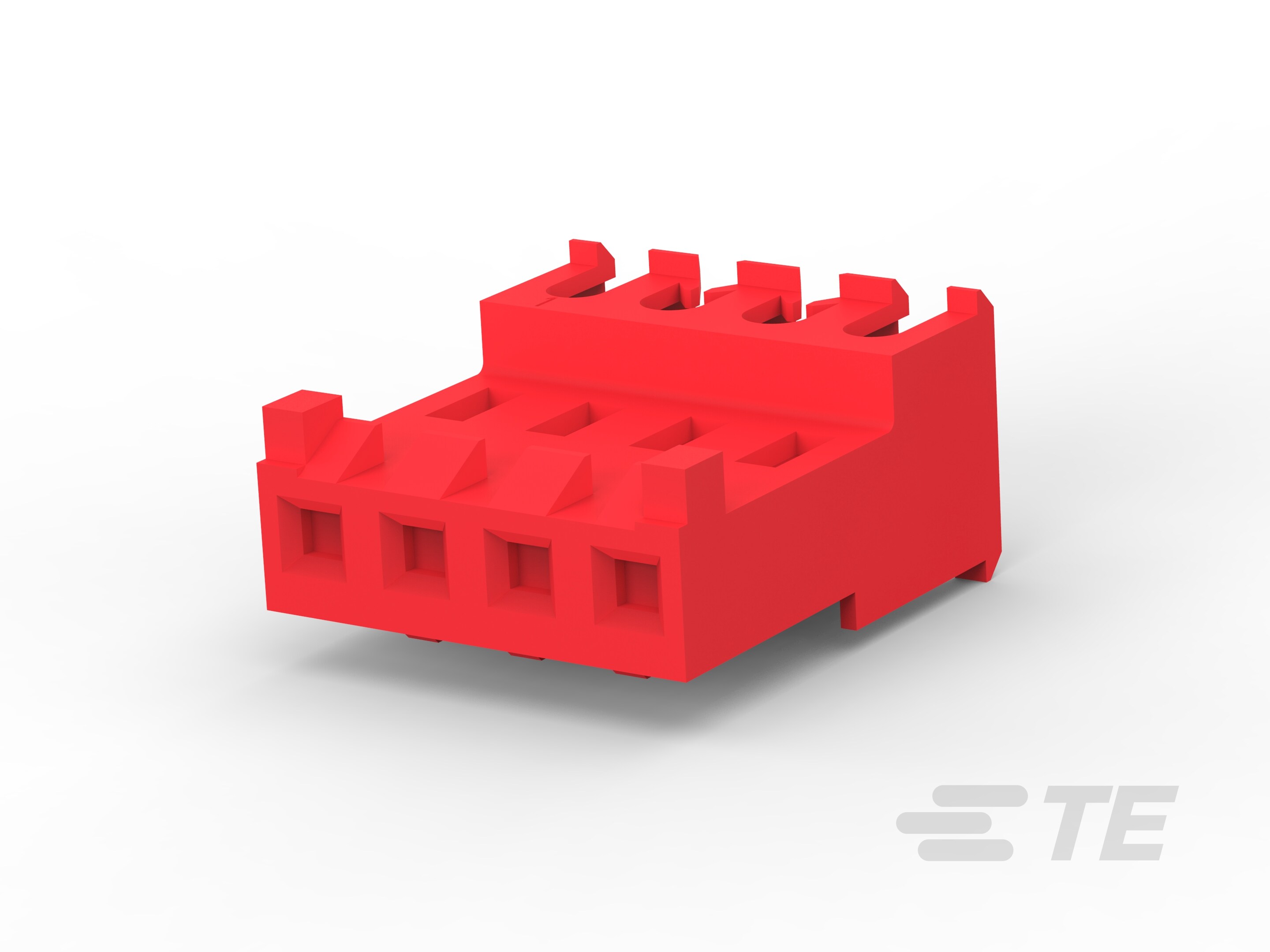

TE Connectivity AMP Connectors 3-644467-4	1	Receptacle	Feed Through Polarizing Key	IDC	Red	Free Hanging (In-Line)	80 µin	Female Socket	Locking Ramp	22 AWG	Discrete Ribbon Cable	4	0.156 in	Tin

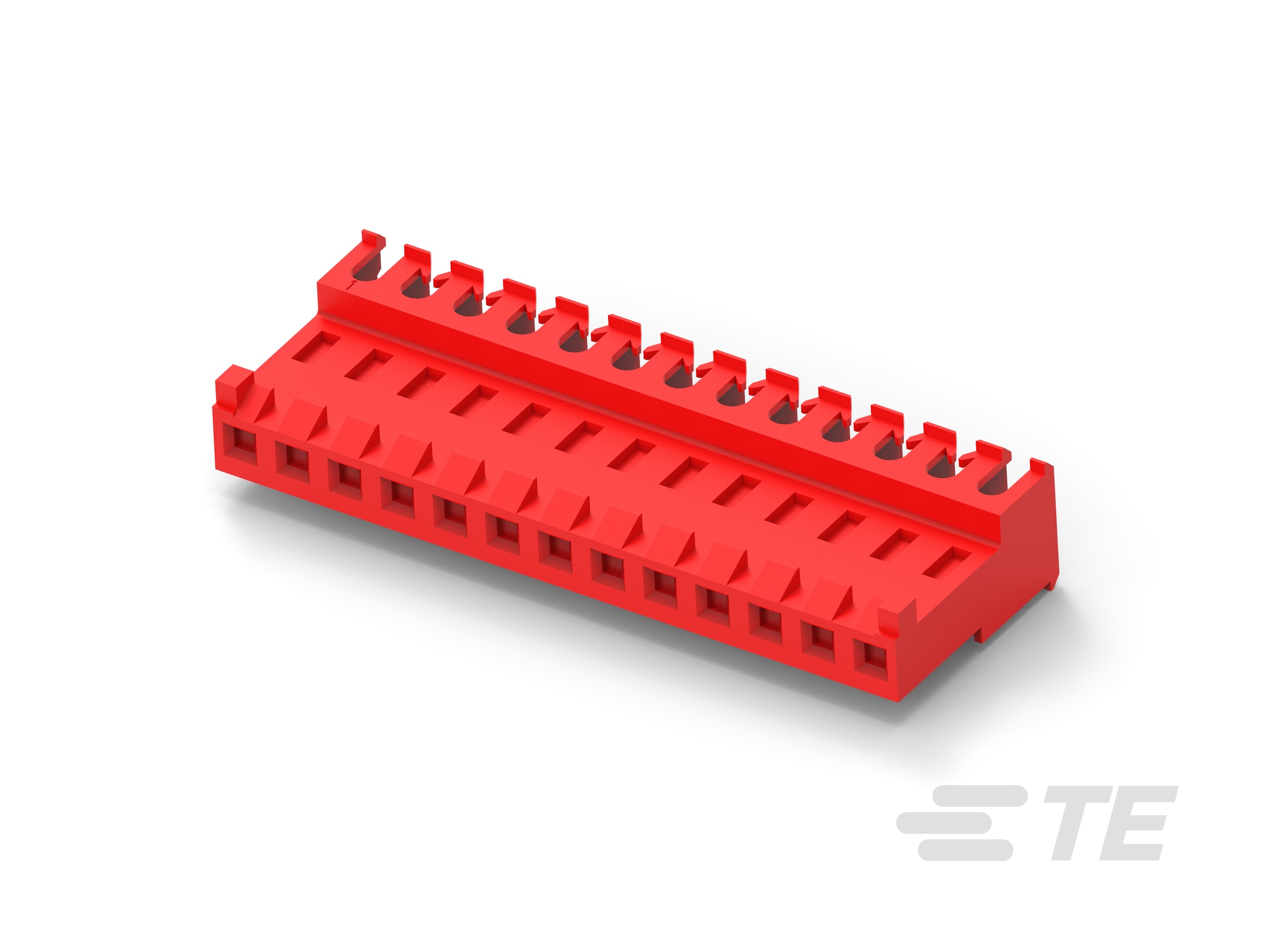

TE Connectivity AMP Connectors 4-644467-3	1	Receptacle	Feed Through Polarizing Key	IDC	Red	Free Hanging (In-Line)	80 µin	Female Socket	Locking Ramp	22 AWG	Discrete Ribbon Cable	13	0.156 in	Tin

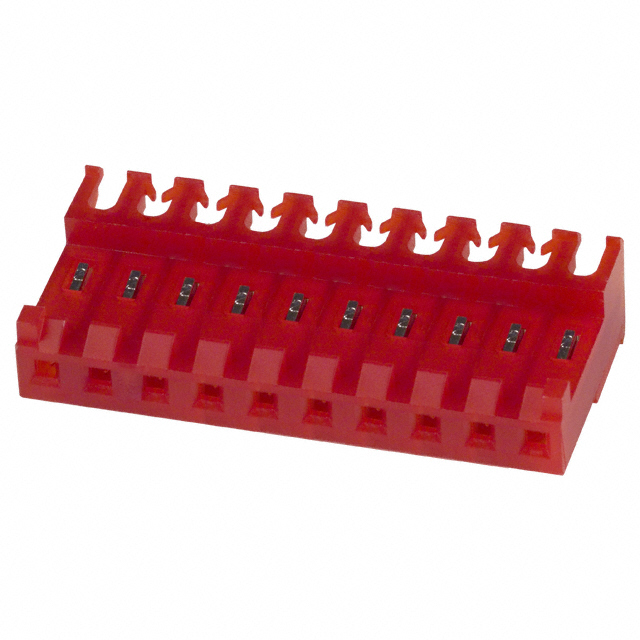

TE Connectivity AMP Connectors 4-644467-0	1	Receptacle	Feed Through Polarizing Key	IDC	Red	Free Hanging (In-Line)	80 µin	Female Socket	Locking Ramp	22 AWG	Discrete Ribbon Cable	10	0.156 in	Tin
TE Connectivity AMP Connectors 3-644467-6	1	Receptacle	Feed Through Polarizing Key	IDC	Red	Free Hanging (In-Line)	80 µin	Female Socket	Locking Ramp	22 AWG	Discrete Ribbon Cable	6	0.156 in	Tin

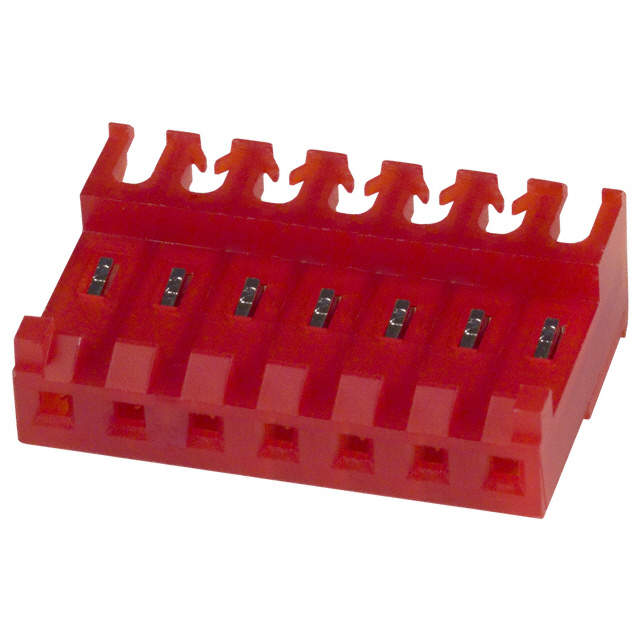

TE Connectivity AMP Connectors 644467-7	1	Receptacle	Feed Through Polarizing Key	IDC	Red	Free Hanging (In-Line)	80 µin	Female Socket	Locking Ramp	22 AWG	Discrete Ribbon Cable	7	0.156 in	Tin-Lead

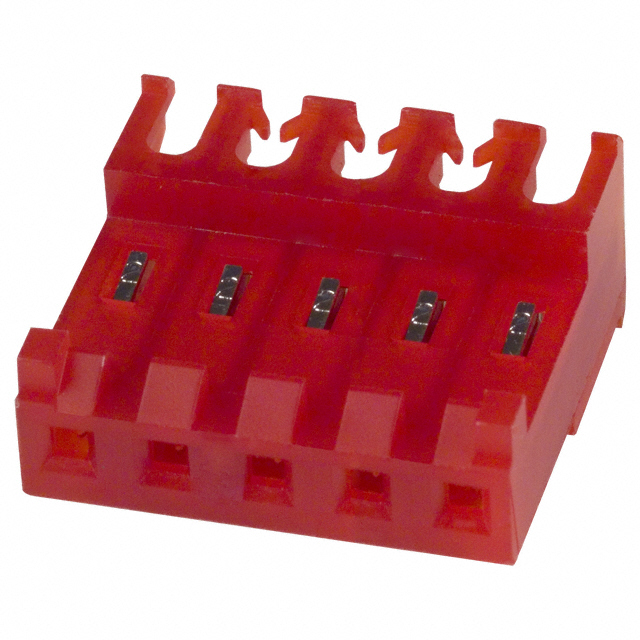

TE Connectivity AMP Connectors 3-644467-5	1	Receptacle	Feed Through Polarizing Key	IDC	Red	Free Hanging (In-Line)	80 µin	Female Socket	Locking Ramp	22 AWG	Discrete Ribbon Cable	5	0.156 in	Tin

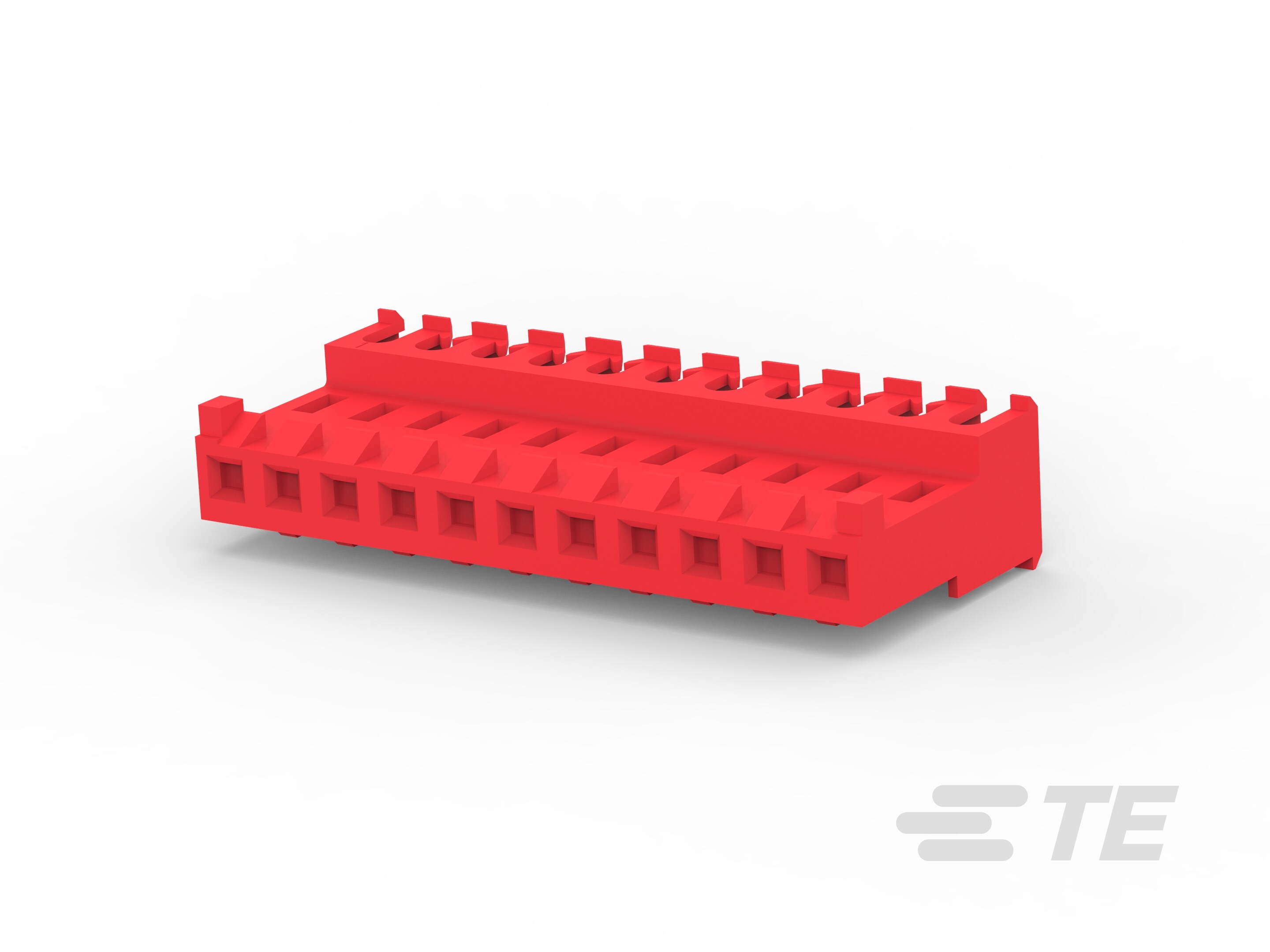

TE Connectivity AMP Connectors 4-644467-1	1	Receptacle	Feed Through Polarizing Key	IDC	Red	Free Hanging (In-Line)	80 µin	Female Socket	Locking Ramp	22 AWG	Discrete Ribbon Cable	11	0.156 in	Tin
