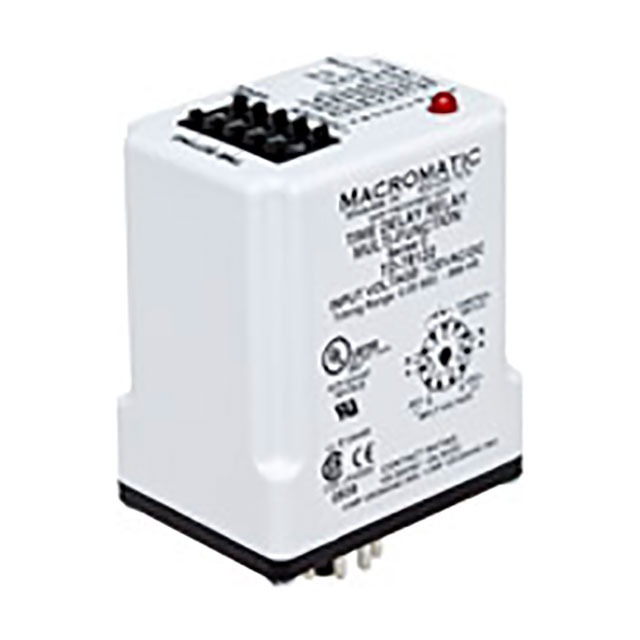

TD-78122

Active

Macromatic Industrial Controls

RELAY TIME DELAY 999HR 10A 240V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY TIME DELAY 999HR 10A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	TD-78122

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	240 VAC, 30 VDC, 10 A
Delay Time [Max]	999 Hrs
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 11 Pin (Octal)
Timing Adjustment Method	Thumbwheel Switches
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

RELAY TIME DELAY 999HR 10A 240V

Part	Mounting Type	Voltage - Supply	Contact Rating @ Voltage	Termination Style	Timing Initiate Method	Relay Type	Delay Time [Min]	Delay Time [Max]	Function	Timing Adjustment Method	Circuit
Macromatic Industrial Controls TD-78122	Socketable	120 VAC	10 A, 30 VDC, 240 VAC	Plug In, 11 Pin (Octal)	Input Voltage	Mechanical Relay	0.05 Sec	999 Hrs	Programmable (Multi-Function)	Thumbwheel Switches	DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 129.84

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 999 Hrs Delay 10A @ 240VAC/30VDC Socketable
