1-1969590-0
ActiveTE Connectivity AMP Connectors

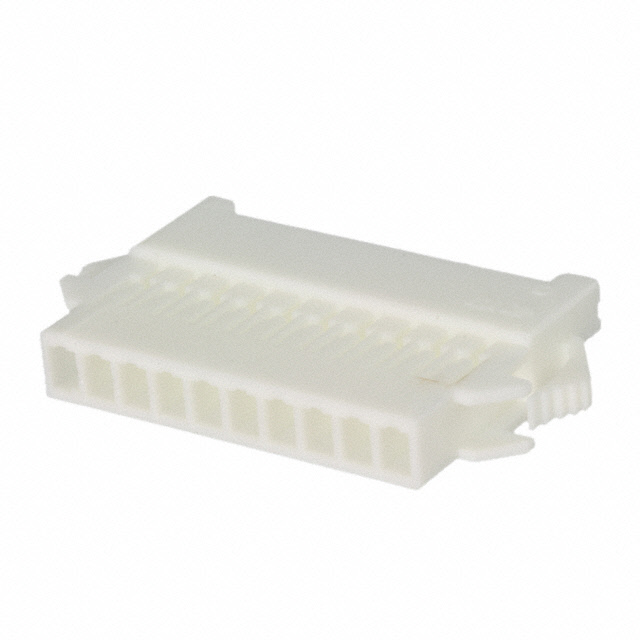

CONN HOUSING RCP 10 POS 2.5MM CRIMP ST PANEL MOUNT WHITE BAG
1-1969590-0
ActiveTE Connectivity AMP Connectors
CONN HOUSING RCP 10 POS 2.5MM CRIMP ST PANEL MOUNT WHITE BAG
Description
General part information
1969590 Series
Housing, Receptacle, Wire-to-Panel / Wire-to-Wire, 10 Position, 2.5 mm [.098 in] Centerline, Crimp, 1 Row, White, Wire & Cable, Economy Power 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1969590-0 |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch | 0.098 in |
