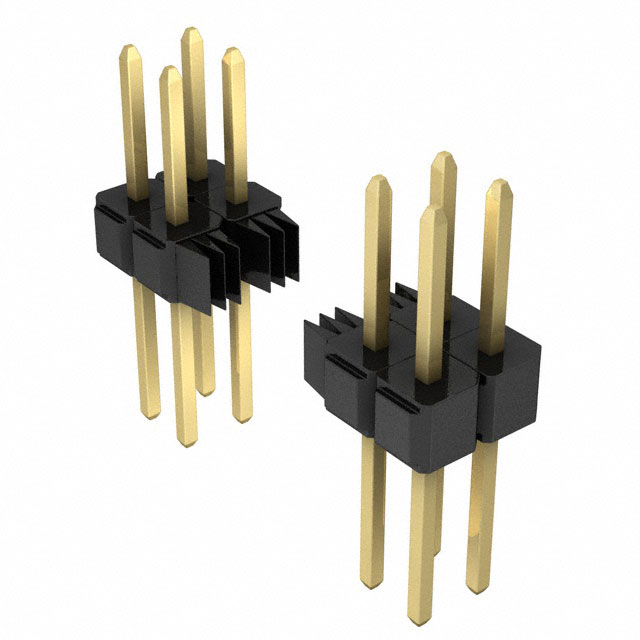

929665-08-31-I

Active

3M (TC)

CONN HEADER VERT 62POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

929665-08-31-I

Active

3M (TC)

CONN HEADER VERT 62POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929665-08-31-I

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Length - Post	0.31 in
Contact Length - Post	7.87 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	62
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.645 in
Overall Contact Length	16.38 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

929665 Series

...

Part	Contact Length - Post [x]	Contact Length - Post	Insulation Color	Number of Positions	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Fastening Type	Connector Type	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Shrouding	Insulation Height	Insulation Height	Mounting Type	Contact Type	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Termination	Contact Length - Post	Overall Contact Length	Contact Length - Post [x]
3M (TC) 929665-01-12-EU	0.11 in	2.79 mm	Black	24	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	11.3 mm	0.445 "	10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder
3M (TC) 929665-04-28-I		12.95 mm	Black	56	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	21.46 mm	0.845 "	10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder	0.51 in
3M (TC) 929665-08-31-I		7.87 mm	Black	62	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	16.38 mm	0.645 in	10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder	0.31 in
3M (TC) 929665-05-33-EU		15.49 mm	Black	66	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	24 mm	0.945 in	10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder	0.61 in
3M (TC) 929665-04-09-EU		12.95 mm	Black	18	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	21.46 mm	0.845 "	10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder	0.51 in
3M (TC) 929665-02-06-EU	0.21 in		Black	12	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	0.545 in		10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder		13.84 mm	5.33 mm
3M (TC) 929665-05-19-EU		15.49 mm	Black	38	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	24 mm	0.945 in	10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder	0.61 in
3M (TC) 929665-03-33-EU			Black	66	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	18.92 mm	0.745 "	10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder
3M (TC) 929665-01-13-I	0.11 in	2.79 mm	Black	26	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	11.3 mm	0.445 "	10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder
3M (TC) 929665-02-24-EU	0.21 in		Black	48	2.5 A	0.235 in	5.97 mm	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	All	10 çin	0.25 çm	Gold	Unshrouded	0.1 in	2.54 mm	Through Hole	Male Pin	0.545 in		10 çin	0.25 çm	Square	-40 °C	105 ░C	2	Solder		13.84 mm	5.33 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.08
		10	$ 12.48
		100	$ 10.88
		500	$ 9.28
		1000	$ 8.51

Description

General part information

929665 Series

Connector Header Through Hole 62 position 0.100" (2.54mm)
