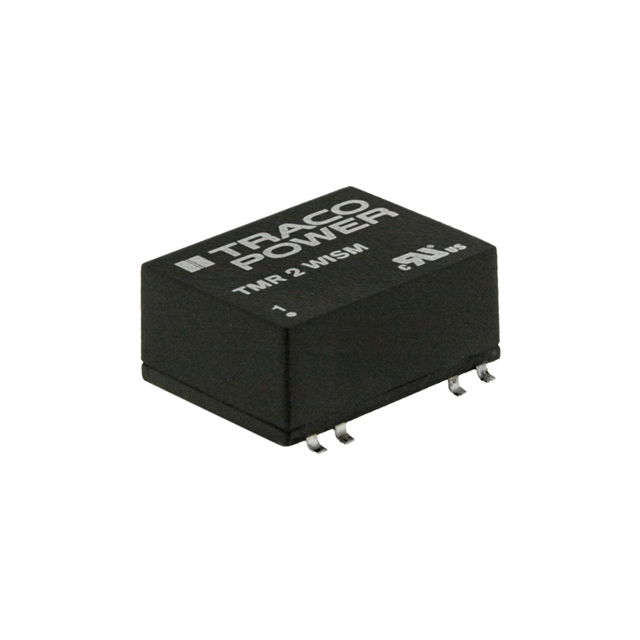

Specification	TMR 2-2423WISM

Applications	ITE (Commercial)
Current - Output (Max)	67 mA
Efficiency	83 %
Features	Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Package Leads	7 Leads
Package Name	14-SMD Module
Power (Watts)	2 w
Size / Dimension Height	0.34 in
Size / Dimension Length	0.75 in
Size / Dimension Width	0.59 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	9 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

TMR 2 Series

Part	Efficiency	Type	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Output 1	Voltage - Input (Min)	Applications	Number of Outputs	Voltage - Isolation	Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Package Leads	Package Name	Mounting Type	Power (Watts)	Current - Output (Max)	Voltage - Output 2
Traco Power TMR 2-0515WISM	84 %	Isolated Module	0.75 in	0.59 in	0.34 in	24 V	4.5 V	ITE (Commercial)	1	1500 Vrns	Remote On/Off SCP	80 °C	-40 °C	12 V	7 Leads	14-SMD Module	Surface Mount	2 w	83 mA
Traco Power TMR 2-1210WIN	75 %	Isolated Module	0.86 in	0.37 in	0.44 in	3.3 V	4.5 V	ITE (Commercial)	1	1500 Vrns	OCP Remote On/Off SCP	90 °C	-40 °C	18 V	7 Leads	8-SIP Module	Through Hole	1.7 W	500 mA
Traco Power TMR 2-2412WIN	82 %	Isolated Module	0.86 in	0.44 in	0.37 in	12 V	9 V	ITE (Commercial)	1	1500 Vrns	OCP Remote On/Off SCP	90 °C	-40 °C	36 V	7 Leads	8-SIP Module	Through Hole	2 w	167 mA
Traco Power TMR 2-0512WISM	84 %	Isolated Module	0.75 in	0.59 in	0.34 in	12 V	4.5 V	ITE (Commercial)	1	1500 Vrns	Remote On/Off SCP	80 °C	-40 °C	12 V	7 Leads	14-SMD Module	Surface Mount	2 w	167 mA
Traco Power TMR 2-2411E	77 %	Isolated Module	0.86 in	0.37 in	0.44 in	5 V	18 V	ITE (Commercial)	1	1000 Vrms	Remote On/Off SCP	85 °C	-40 °C	36 V	7 Leads	8-SIP Module	Through Hole	2 w	400 mA
Traco Power TMR 2-4812WI	78 %	Isolated Module	1.02 in	0.37 in	0.49 in	12 V	18 V	ITE (Commercial)	1	1500 Vrns	Remote On/Off SCP	85 °C	-40 °C	75 V	7 Leads	9-SIP Module	Through Hole	2 w	165 mA
Traco Power TMR 2-2412E	81 %	Isolated Module	0.86 in	0.37 in	0.44 in	12 V	18 V	ITE (Commercial)	1	1000 Vrms	Remote On/Off SCP	85 °C	-40 °C	36 V	7 Leads	8-SIP Module	Through Hole	2 w	167 mA
Traco Power TMR 2-2423WISM	83 %	Isolated Module	0.75 in	0.59 in	0.34 in	15 V	9 V	ITE (Commercial)	2	1500 Vrns	Remote On/Off SCP	80 °C	-40 °C	36 V	7 Leads	14-SMD Module	Surface Mount	2 w	67 mA	-15 V
Traco Power TMR 2-4810WIN	74 %	Isolated Module	0.86 in	0.37 in	0.44 in	3.3 V	18 V	ITE (Commercial)	1	1500 Vrns	OCP Remote On/Off SCP	90 °C	-40 °C	75 V	7 Leads	8-SIP Module	Through Hole	1.7 W	500 mA
Traco Power TMR 4822	81 %	Isolated Module	0.86 in	0.36 in	0.44 in	12 V	36 V	ITE (Commercial)	2	1500 Vrns	Remote On/Off SCP	85 °C	-40 °C	75 V	7 Leads	8-SIP Module	Through Hole	2 w	85 mA	-12 V
