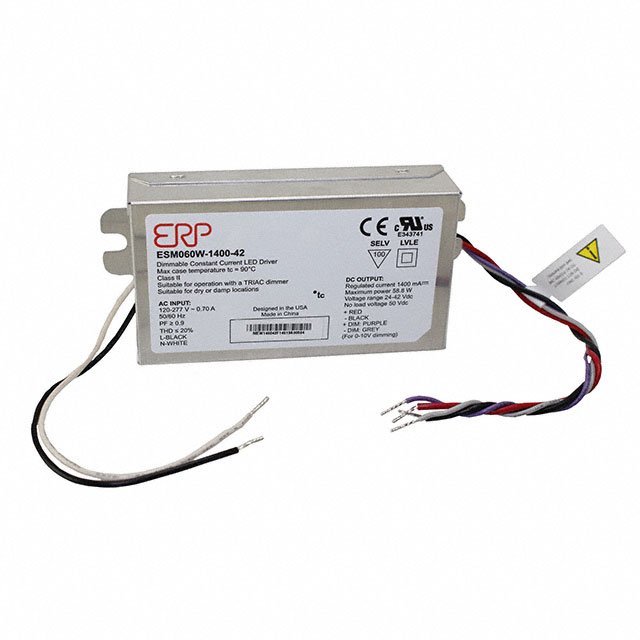

ESM060W-1400-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 1.4A

Search across all available documentation for this part.

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 1.4A

Technical Specifications

Parameters and characteristics for this part

LED DRIVER CC AC/DC 28-42V 1.4A

Part	Weight	Weight	Features	Ratings	Dimming	Voltage - Input (Max) [Max]	Mounting Type	Efficiency	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Approval Agency	Number of Outputs	Power (Watts)	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style
ERP Power, LLC ESM060W-1400-42	252 g	0.556 lb	OCP, OTP, SCP	IP20, NEMA 410	ELV, TRIAC	277 VAC	Chassis Mount	87 %	1.4 A	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	Constant Current	28 V	42 V	120 VAC	CB, CE, cRUcs, cUL, FC, UL	1	59 W	AC DC Converter	-30 ░C	90 °C	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4A 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
