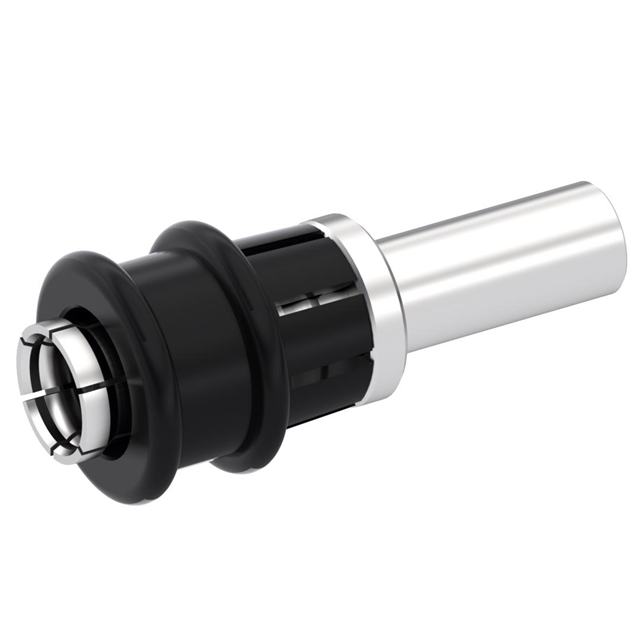

R117082807

Active

Radiall USA, Inc.

SMB / STRAIGHT PLUG FULL CRIMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / STRAIGHT PLUG FULL CRIMP T

Technical Specifications

Parameters and characteristics for this part

Specification	R117082807

Body Finish	Gold
Body Material	Brass
Cable Group	316, RG-188
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	335 V

Part	Impedance	Body Material	Body Finish	Shield Termination	Fastening Type	Contact Termination	Dielectric Material	Mounting Type	Housing Color	Number of Ports	Center Contact Material	Connector Style	Connector Type	Center Contact Plating	Cable Group	Voltage Rating	Frequency - Max [Max]	Mating Cycles
Radiall USA, Inc. R117082807	50 Ohms	Brass	Gold	Crimp	Snap-On	Crimp	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	1	Beryllium Copper	SMB	Female Socket Plug	Gold	316 RG-188	335 V	4 GHz	500
Radiall USA, Inc. R117082807W	50 Ohms	Brass	Gold	Crimp	Snap-On	Crimp	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	1	Beryllium Copper	SMB	Female Socket Plug	Gold	316 RG-188	335 V	4 GHz	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
