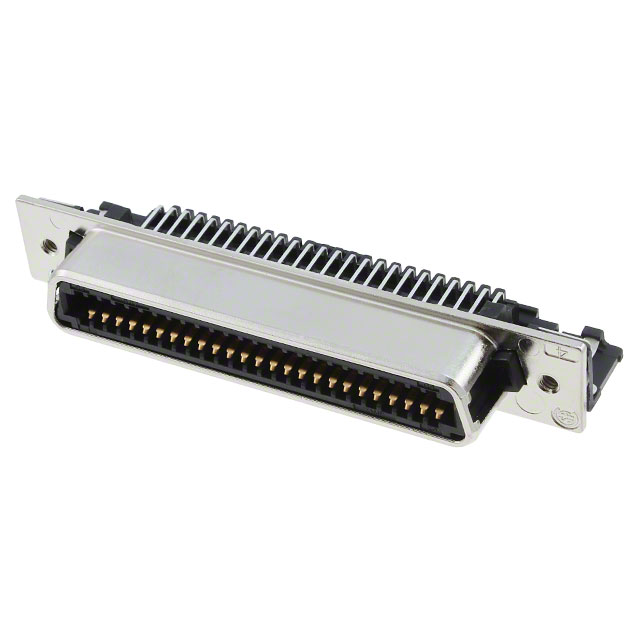

Specification	6339447-9

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Shielded, Board Lock, Latch Lock
Flange Feature	Shell (4-40), Housing
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Rows	2
Termination	Solder

6339447 Series

Part	Features	Connector Type	Number of Positions	Mounting Type	Termination	Number of Rows	Connector Style	Contact Finish	Flange Feature	Contact Finish Thickness
TE Connectivity AMP Connectors 6339447-1	Board Lock Latch Lock Shielded	Receptacle	50	Right Angle Through Hole	Solder	2	Outer Shroud Contacts	Gold	Housing Shell (4-40)	30 µin
TE Connectivity AMP Connectors 6339447-9	Board Lock Latch Lock Shielded	Receptacle	50	Right Angle Through Hole	Solder	2	Outer Shroud Contacts	Gold	Housing Shell (4-40)	30 µin

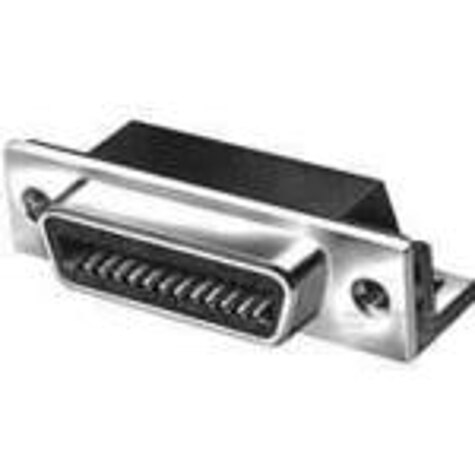

TE Connectivity AMP Connectors 6339447-7	Board Lock Shielded	Receptacle	50	Right Angle Through Hole	Solder	2	Outer Shroud Contacts	Gold	Housing Shell (4-40)	30 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
