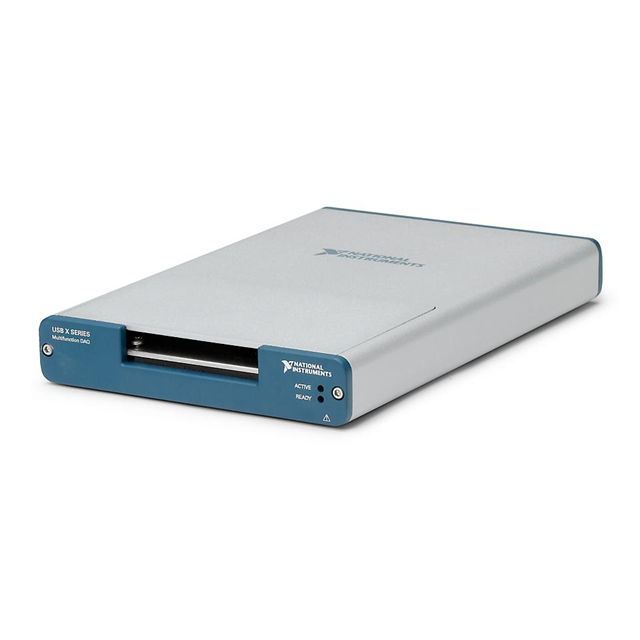

781444-01

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Search across all available documentation for this part.

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	781444-01

Bidirectional Channels	8
Bus Connection	USB 2.0
Counter/Timers	4
Front Connection	Screw Terminal
Function	Multifunction I/O
Input Range	10 V
Input Resolution	16 Bits
Number of Inputs and Type [custom]	8
Number of Inputs and Type [custom]	16
Number of Outputs and Type [custom]	2
Number of Outputs and Type [custom]	8
Output Range [Max]	10 V
Output Range [Min]	-10 V
Sampling Rate (Per Second)	1.25 M per second
Type	DAQ Device

Part	Sampling Rate (Per Second)	Output Range [Min]	Output Range [Max]	Counter/Timers	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Input Resolution	Input Range	Function	Type	Bidirectional Channels	Front Connection	Bus Connection	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]
NI 781444-01	1.25 M per second	-10 V	10 V	4	8	16	16 Bits	10 V	Multifunction I/O	DAQ Device	8	Screw Terminal	USB 2.0	2	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6493.05

General part information

Multifunction I/O DAQ Device USB 2.0 Screw Terminal
