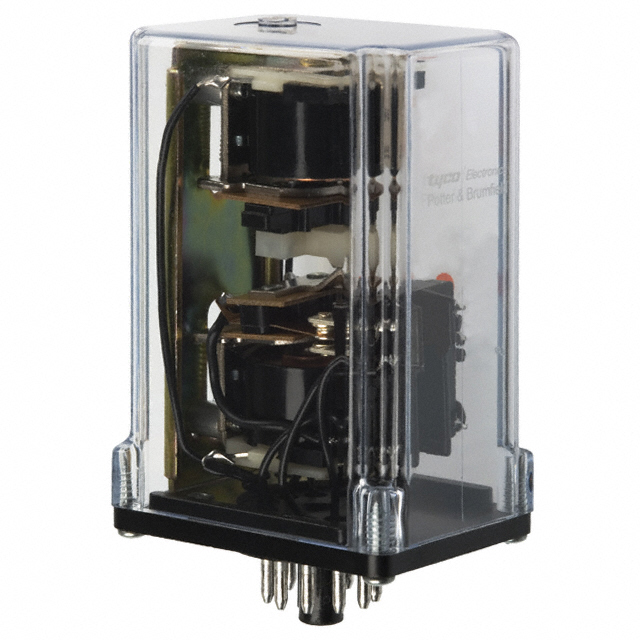

KBP-20DG-110
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 5PDT 10A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KBP-20DG-110 |
|---|---|
| Coil Current | 24 mA |
| Coil Resistance | 4.56 kOhms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 110 VDC |
| Contact Form | 5PDT (5 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 82.5 VDC |
| Relay Type | General Purpose |
| Switching Voltage | 120 VAC |
| Termination Style | Plug In, 20 Pin (Octal) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KBP-20D Series
General Purpose Relay 5PDT (5 Form C) 110VDC Coil Socketable
