CMS16P06H8-HF

Active

Comchip Technology

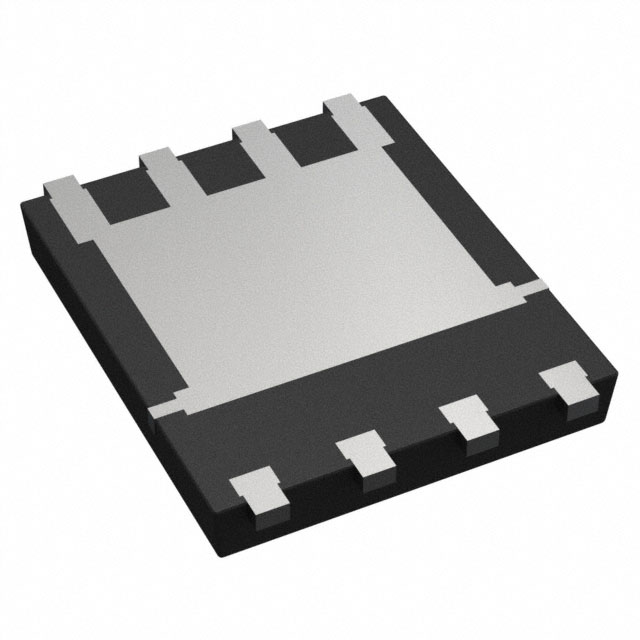

MOSFET P-CH 60V 5A/16A DFN5X6

Search across all available documentation for this part.

Active

Comchip Technology

MOSFET P-CH 60V 5A/16A DFN5X6

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMS16P06H8-HF	CMS16 Series

Current - Continuous Drain (Id) @ 25°C	16 A, 5 A	4.4 - 16 A
Drain to Source Voltage (Vdss)	60 V	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V	4.5 - 10 V
FET Type	P-Channel	N-Channel, P-Channel
Gate Charge (Qg) (Max) @ Vgs	-	14 nC
Gate Charge (Qg) (Max) @ Vgs [Max]	22 nC	22 nC
Input Capacitance (Ciss) (Max) @ Vds	1256 pF	815 - 1256 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	8-PowerTDFN	SC-63, DPAK (2 Leads + Tab), TO-252-3, 8-PowerTDFN
Power Dissipation (Max)	25 W, 2 W	2 - 27 W
Rds On (Max) @ Id, Vgs	48 mOhm	48 - 50 mOhm
Supplier Device Package	PR-PAK	PR-PAK
Supplier Device Package	DFN5x6	TO-252 (DPAK), DFN5x6
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs (Max)	20 V	20 V
Vgs(th) (Max) @ Id	2.5 V	2.5 V

HIGH POWER, CURRENT HANDING CAPABILITY MOSFET

Part	Rds On (Max) @ Id, Vgs	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Gate Charge (Qg) (Max) @ Vgs	Power Dissipation (Max)	Mounting Type	FET Type	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]
Comchip Technology CMS16N06D-HF	50 mOhm	TO-252 (DPAK)	DPAK (2 Leads + Tab), SC-63, TO-252-3	-55 °C	150 °C	MOSFET (Metal Oxide)	14 nC	2 W, 27 W	Surface Mount	N-Channel	2.5 V	4.5 V, 10 V	815 pF	60 V	4.4 A, 16 A	20 V
Comchip Technology CMS16P06H8-HF	48 mOhm	DFN5x6	8-PowerTDFN	-55 °C	150 °C	MOSFET (Metal Oxide)		2 W, 25 W	Surface Mount	P-Channel	2.5 V	4.5 V, 10 V	1256 pF	60 V	5 A, 16 A	20 V	PR-PAK	22 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

P-Channel 60 V 5A (Ta), 16A (Tc) 2W (Ta), 25W (Tc) Surface Mount DFN5x6 (PR-PAK)
