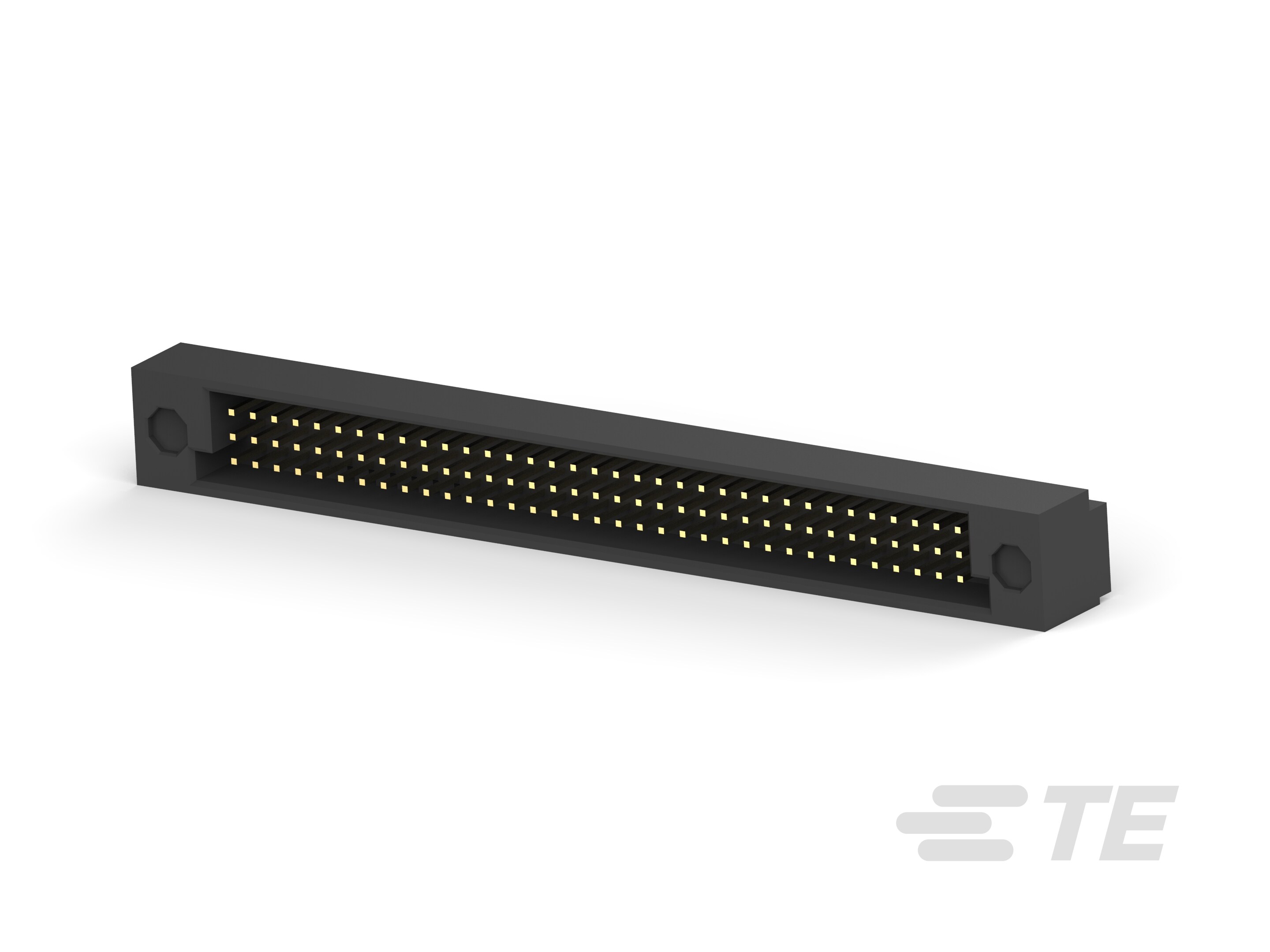

Specification	532433-4

Color	Black
Connector Style	High Density (HDC, HDI, HPC)
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	105
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	0.1 in
Termination	Solder

532433 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Mounting Type	Features	Contact Finish Thickness	Pitch	Number of Positions Loaded	Connector Style	Number of Positions	Number of Rows	Color	Termination	Connector Type	Contact Finish
TE Connectivity AMP Connectors 532433-5	125 °C	-65 °C	UL94 V-0	Through Hole	Mating Guide	30 µin	0.1 in	All	High Density (HDC HDI HPC)	120	3	Black	Solder	Header Male Pins	Gold
TE Connectivity AMP Connectors 2-532433-1	125 °C	-65 °C	UL94 V-0	Through Hole	Mating Guide	30 µin	0.1 in	All	High Density (HDC HDI HPC)	54	3	Black	Solder	Header Male Pins	Gold
TE Connectivity AMP Connectors 532433-7	125 °C	-65 °C	UL94 V-0	Through Hole	Mating Guide	30 µin	0.1 in	All	High Density (HDC HDI HPC)	150	3	Black	Solder	Header Male Pins	Gold
TE Connectivity AMP Connectors 532433-6	125 °C	-65 °C	UL94 V-0	Through Hole	Mating Guide	30 µin	0.1 in	All	High Density (HDC HDI HPC)	135	3	Black	Solder	Header Male Pins	Gold
TE Connectivity AMP Connectors 1-532433-2	125 °C	-65 °C	UL94 V-0	Through Hole	Mating Guide	30 µin	0.1 in	All	High Density (HDC HDI HPC)	225	3	Black	Solder	Header Male Pins	Gold
TE Connectivity AMP Connectors 532433-4	125 °C	-65 °C	UL94 V-0	Through Hole	Mating Guide	30 µin	0.1 in	All	High Density (HDC HDI HPC)	105	3	Black	Solder	Header Male Pins	Gold
