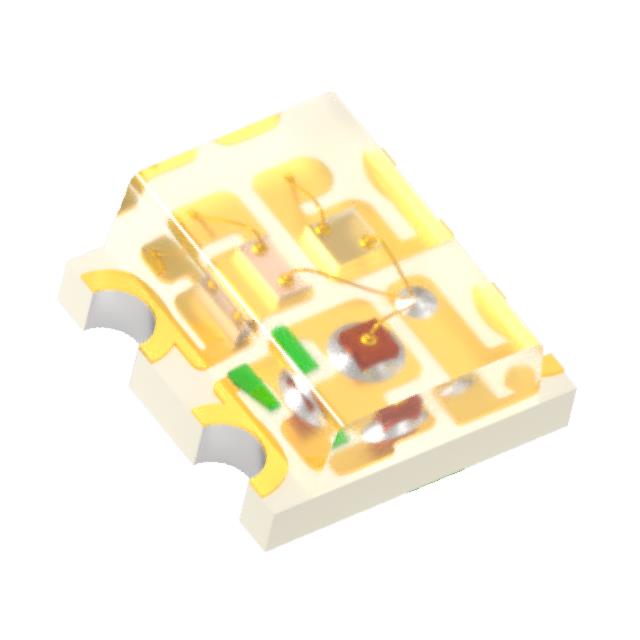

Specification	APTF1616SEKJ3ZGKQBKC

Color	Blue (RGB), Green, Red
Configuration	Common Cathode
Current - Test (Blue)	20 mA
Current - Test (Green)	20 mA
Current - Test (Red)	20 mA
Current - Test Colors	Red, Blue, Green
Height (Max)	0.9 mm
Lens Color	Colorless
Lens Length	1.2 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Clear
Lens Width	1.6 mm
Millicandela Rating (Blue)	70 mcd
Millicandela Rating (Green)	300 mcd
Millicandela Rating (Red)	350 mcd
Millicandela Rating Colors	Red, Blue, Green
Mounting Type	Surface Mount
Package / Case	0606 (1616 Metric)
Package Diameter	1616 mm
Package Name	4-SMD, 0606
Size / Dimension Length	1.6 mm
Size / Dimension Width	1.6 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) (Blue)	3.3 V
Voltage - Forward (Vf) (Typ) (Green)	3.3 V
Voltage - Forward (Vf) (Typ) (Red)	2.2 V
Voltage - Forward (Vf) (Typ) Color	Red, Green, Blue
Wavelength - Dominant (Blue)	465 nm
Wavelength - Dominant (Green)	525 nm
Wavelength - Dominant (Red)	625 nm
Wavelength - Dominant Color	Red, Blue, Green
Wavelength - Peak (Blue)	460 nm
Wavelength - Peak (Green)	515 nm
Wavelength - Peak (Red)	640 nm
Wavelength - Peak Colors	Blue, Green, Red

APTF1616 Series

Part	Viewing Angle	Configuration	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Green)	Millicandela Rating (Yellow)	Size / Dimension Width	Size / Dimension Length	Wavelength - Peak Colors	Wavelength - Peak (Yellow)	Wavelength - Peak (Red)	Wavelength - Peak (Green)	Lens Color	Color	Package / Case	Package Name	Mounting Type	Voltage - Forward (Vf) (Typ) (Value 1)	Voltage - Forward (Vf) (Typ) (Value 2)	Voltage - Forward (Vf) (Typ) (Value 3)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Red)	Height (Max)	Current - Test Colors	Current - Test (Green)	Current - Test (Red)	Lens Style	Lens Transparency	Lens Width	Lens Length	Package Diameter	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)	Current - Test (Blue)	Millicandela Rating (Blue)	Wavelength - Dominant (Blue)	Wavelength - Peak (Blue)
Kingbright APTF1616SURKCGKSYKC	120 °	Common Anode	Green Red Yellow	250 mcd	55 mcd	120 mcd	1.6 mm	1.6 mm	Green Red Yellow	590 nm	650 nm	574 nm	Colorless	Green Red Yellow	4-SMD No Lead	4-SMD	Surface Mount	2.1 V	1.95 V	2 V	Green Red Yellow	570 nm	630 nm	0.9 mm	Green Red Yellow	20 mA	20 mA	Flat Top Rectangle	Clear	1.6 mm	1.1 mm
Kingbright APTF1616SEEVGAPBAC	120 °	Common Anode	Blue Green Red	400 mcd	180 mcd		1.6 mm	1.6 mm	Blue Green Red		630 nm	520 nm	Colorless	Blue (RGB) Green Red	0606 (1616 Metric)	0606 4-SMD	Surface Mount				Blue Green Red	525 nm	621 nm	0.9 mm	Blue Green Red	20 mA	20 mA	Flat Top Rectangle	Clear	1.6 mm	1.2 mm	1616 mm	3.2 V	Blue Green Red	3.2 V	2 V	20 mA	40 mcd	470 nm	468 nm
Kingbright APTF1616QBDSURKCGKC	120 °	Common Anode	Blue Green Red	250 mcd	55 mcd		1.6 mm	1.6 mm	Blue Green Red		650 nm	574 nm	Colorless	Blue (RGB) Green Red	0606 (1616 Metric)	0606 4-SMD	Surface Mount				Blue Green Red	570 nm	630 nm	0.9 mm	Blue Green Red	20 mA	20 mA	Flat Top Rectangle	Clear	1.25 mm	1.2 mm	1616 mm	3.3 V	Blue Green Red	2.1 V	1.95 V	20 mA	80 mcd	470 nm	468 nm
Kingbright APTF1616SEKJ3ZGKQBKC	120 °	Common Cathode	Blue Green Red	350 mcd	300 mcd		1.6 mm	1.6 mm	Blue Green Red		640 nm	515 nm	Colorless	Blue (RGB) Green Red	0606 (1616 Metric)	0606 4-SMD	Surface Mount				Blue Green Red	525 nm	625 nm	0.9 mm	Blue Green Red	20 mA	20 mA	Flat Top Rectangle	Clear	1.6 mm	1.2 mm	1616 mm	3.3 V	Blue Green Red	3.3 V	2.2 V	20 mA	70 mcd	465 nm	460 nm
Kingbright APTF1616SEEZGKQBKC	120 °	Common Anode	Blue Green Red	110 mcd	280 mcd		1.6 mm	1.6 mm	Blue Green Red		630 nm	515 nm	Colorless	Blue (RGB) Green Red	0606 (1616 Metric)	0606 4-SMD	Surface Mount				Blue Green Red	525 nm	621 nm	0.9 mm	Blue Green Red	20 mA	20 mA	Flat Top Rectangle	Clear	1.6 mm	1.2 mm	1616 mm	3.3 V	Blue Green Red	3.3 V	2 V	20 mA	70 mcd	465 nm	460 nm
Kingbright APTF1616SEJ3ZGGVBDC	120 °	Common Cathode	Blue Green Red	360 mcd	750 mcd		1.6 mm	1.6 mm	Blue Green Red		640 nm	520 nm	Colorless	Blue (RGB) Green Red	0606 (1616 Metric)	0606 4-SMD	Surface Mount				Blue Green Red	525 nm	625 nm	0.9 mm	Blue Green Red	20 mA	20 mA	Flat Top Rectangle	Clear	1.6 mm	1.2 mm	1616 mm	3.3 V	Blue Green Red	3.2 V	2.2 V	20 mA	140 mcd	470 nm	465 nm
Kingbright APTF1616SEEZGQBDC	120 °	Common Anode	Blue Green Red	110 mcd	280 mcd		1.6 mm	1.6 mm	Blue Green Red		630 nm	515 nm	Colorless	Blue (RGB) Green Red	0606 (1616 Metric)	0606 4-SMD	Surface Mount				Blue Green Red	525 nm	621 nm	0.9 mm	Blue Green Red	20 mA	20 mA	Flat Top Rectangle	Clear	1.6 mm	1.2 mm	1616 mm	3.3 V	Blue Green Red	3.3 V	2 V	20 mA	70 mcd	465 nm	460 nm
Kingbright APTF1616LSEKJ3ZGKQBC	120 °	Common Cathode	Blue Green Red	40 mcd	50 mcd		1.6 mm	1.6 mm	Blue Green Red		640 nm	515 nm	Colorless	Blue (RGB) Green Red	0606 (1616 Metric)	0606 4-SMD	Surface Mount				Blue Green Red	525 nm	625 nm	0.9 mm	Blue Green Red	2 mA	2 mA	Flat Top Rectangle	Clear	1.6 mm	1.2 mm	1616 mm	2.7 V	Blue Green Red	2.7 V	1.8 V	2 mA	14 mcd	465 nm	460 nm
Kingbright APTF1616LSEEZGKQBKC	120 °	Common Anode	Blue Green Red	15 mcd	50 mcd		1.6 mm	1.6 mm	Blue Green Red		630 nm	515 nm	Colorless	Blue (RGB) Green Red	0606 (1616 Metric)	0606 4-SMD	Surface Mount				Blue Green Red	525 nm	621 nm	0.9 mm	Blue Green Red	2 mA	2 mA	Flat Top Rectangle	Clear	1.6 mm	1.2 mm	1616 mm	2.7 V	Blue Green Red	2.7 V	1.8 V	2 mA	14 mcd	465 nm	460 nm
