L6R65DM-150-C8

Active

Tri-Mag, LLC

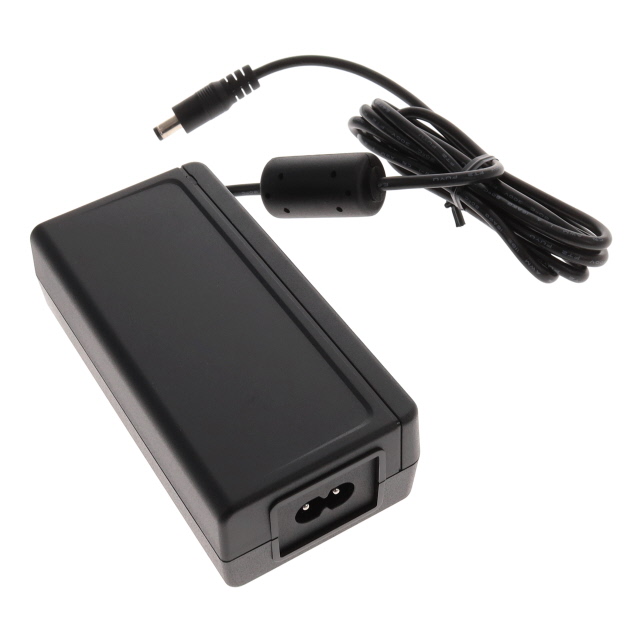

AC/DC DESKTOP ADAPTER 15V 65W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 15V 65W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.54

General part information

15V 65 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	L6R65DM-150-C8	L6R65DM Series

Applications	Medical	Medical
Approval Agency	TUV, cULus, EN, FCC, CE	TUV, cULus, EN, FCC, CE
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	4.34 A	2.71 - 5 A
Efficiency	Level VI	Level VI
Form	Desktop (Class II)	Desktop (Class II)
Input Connector	IEC 320-C8	IEC 320-C8
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	65 W	60 - 65 W
Region Utilized	International	International
Size / Dimension [x]	119.1 mm	119.1 mm
Size / Dimension [x]	4.69 "	4.69 "
Size / Dimension [y]	2.36 "	2.36 "
Size / Dimension [y]	59.9 mm	59.9 mm
Size / Dimension [z]	1.42 in	1.42 in
Size / Dimension [z]	36.1 mm	36.1 mm
Standard Number	60601-1	60601-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	15 VDC	12 - 24 V

AC/DC DESKTOP ADAPTER 24V 65W

Part	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Region Utilized	Applications	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Input Type	Cord Length	Cord Length	Efficiency	Standard Number	No Load Power Consumption [Max]	Input Connector	Approval Agency	Form	Polarization
Tri-Mag, LLC L6R65DM-240-C8	65 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	2.71 A	90 VAC	264 VAC	24 V	International	Medical	40 °C	119.1 mm	4.69 "	2.36 "	59.9 mm	1.42 in	36.1 mm	Cord	1.5 m	59 in	Level VI	60601-1	150 mW	IEC 320-C8	CE, cULus, EN, FCC, TUV	Desktop (Class II)
Tri-Mag, LLC L6R65DM-150-C8	65 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	4.34 A	90 VAC	264 VAC	15 VDC	International	Medical	40 °C	119.1 mm	4.69 "	2.36 "	59.9 mm	1.42 in	36.1 mm	Cord	1.5 m	59 in	Level VI	60601-1	150 mW	IEC 320-C8	CE, cULus, EN, FCC, TUV	Desktop (Class II)	Positive Center
Tri-Mag, LLC L6R65DM-120-C8	60 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	5 A	90 VAC	264 VAC	12 V	International	Medical	40 °C	119.1 mm	4.69 "	2.36 "	59.9 mm	1.42 in	36.1 mm	Cord	1.5 m	59 in	Level VI	60601-1	150 mW	IEC 320-C8	CE, cULus, EN, FCC, TUV	Desktop (Class II)	Positive Center
